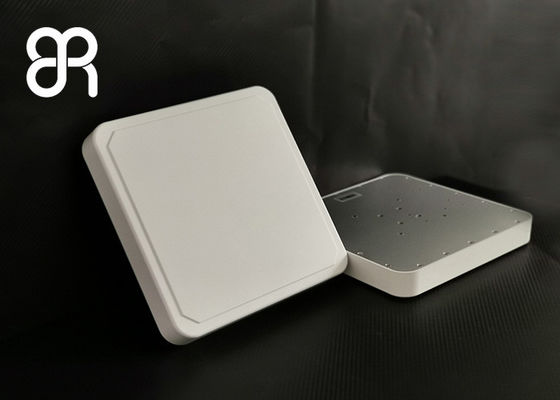

8.5dBic Circular Polarization 960MHz UHF RFID Antenna

8.5dBic Circular Polarization 960MHz UHF RFID Antenna

8.5dBic Circular Polarization 960MHz UHF RFID Antenna
video
8.5dBic Circular Polarization 960MHz UHF RFID Antenna
Product Details:
Place of Origin: China shenzhen
Brand Name: broadradio
Certification: RoHS
Model Number: BRA-01SR
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 5-8work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: UHF RFID Antenna,Circular Polarization Antenna Size: 258mm×258mm×36mm
Weight: 0.8kg Color: Milk-white
Material: Engineering Plastics ASA, Aluminum Production Class: IP65
Operating Temperature: -40℃~+ 85℃ Storage Temperature: -40℃~+ 85℃
High Light:

8.5dBic UHF RFID Antenna

,

Circular Polarization UHF RFID Antenna

,

960MHz Rfid Directional Antenna

BRA-01SR 860MHz~960MHz UHF RFID Antenna,8.5 dBic Gain Circular Polarization Antenna





Broadradio has excellent independent innovation ability and professional technical team. The main RFID members are designers or main bearers of Wal-Mart project series labels, Wuliangye fragile security labels, UHF book labels, and national standard vehicle electronic labels. At present, Broadradio has obtained a number of national patents and PCT international patents.

Product Function and Features

1) The antenna is used for far field applications in the UHF band

2) Side feed design, easy to install

3) Connector type is TNC external thread inner needle

4) Double waterproof design with waterproof ring and silicone, protection grade IP65

Suitable for warehouses, warehouses, logistics distribution centers, airports, hospitals, logistics and transportation terminals, goods conveyors, file filing cabinets, etc.



8.5dBic Circular Polarization 960MHz UHF RFID Antenna 0

Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 8.5 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Circular Polarization

Axial ratio

<3 dB

Front-to-Back Ratio

 ≥ 15dB

Impedance 50±1Ω
Connector Type

RP-TNC Female

Connector Position

 Side

Mechanical Specifications

Size

258mm×258mm×36mm

Weight

0.8kg

Material

Engineering plastics ASA, aluminum

Color

Milk-white

Production Class

IP65

Operating Temperature

-40℃~+ 85℃

Storage Temperature

-40℃~+ 85℃



Industry application case

1) Foxconn for Apple Project Asset Management

2) Oil Drilling Materials Asset Warehouse

3) Some unmanned self-service store

4) A library intelligent optimization solution

5) A brand apparel retail storage management plan



installation

The BRA-01SR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.

The antenna mount is an option and the customer can choose as needed.
