| Place of Origin | China |
| Brand Name | broadradio |
| Model Number | BRA-02CR |

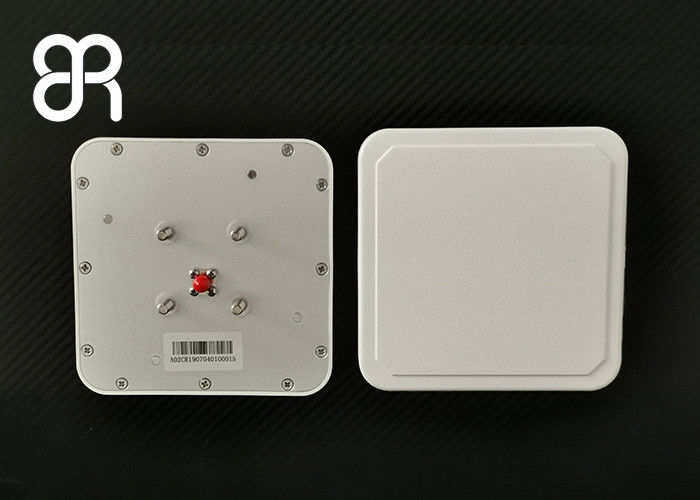

BRA-02CR 6dBic Circular Polarization UHF RFID Reader Antenna SMA-50KFD Female Connector
Radio frequency identification technology (RFID) is an emerging automatic identification technology. Its working principle is to carry out two-way data communication wirelessly to achieve the purpose of transmitting radio frequency information. Under normal circumstances, the RFID system consists of electronic tags, readers and related application system software. Among them, the tag includes two parts: antenna and chip. Since the RFID tag and the reader do not need to be in contact to complete the identification of the two, the RFID system can work in various environments and can simultaneously identify multiple moving targets. So far, RFID systems have been widely used in many fields, such as: logistics management, manufacturing, book management, identification, road automatic toll collection and other fields.
1)BRA-02CR Antenna is of convenient application in automated production line management, warehousing, logistics, retail and other UHF RFID application fields.
2)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
3)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
| Frequency Range | 902MHz～928MHz(865MHz～868MHz) |
| VSWR | ≤1.3:1 |
| Gain | > 6 dBic |
| H side HPBW | 105° |
| E side HPBW | 105° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | SMA-50KFD Female |
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.
