12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management

12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management

  • 12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management
  • 12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management
  • 12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management
12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-45
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 7-10 work days
Payment Terms: T/T,Paypal
Contact Now
Detailed Product Description
Name: 12dBi RFID Antenna,RFID Directional Panel Antenna Frequency Range: 965~868MHz Or 902~928MHz
Size: 445mm×445mm×38mm Gain: 12dBic
Weight: 2.0kg Material: ABS+ Aluminum Parts
Color: White Connector: N-Female

12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management



Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.

Product features

1. Antenna is a general-purpose antenna for UHF RFID applications with high gain and narrow beam.
2. The antenna has a reading distance of 15-20 meters
3. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
4. BRA-45 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.

Electrical Specifications

Frequency Range 965~868MHz or 902~928MHz

Gain

12dBi

Beam Width

Hor:40 Ver:40

VSWR

≤1.3

Impedance

50Ω

Polarization

circular polarization

axial ratio

≤3dB

MAX.Power

50W

Lightning protection

DC ground



Mechanical Specifications

Size 445mm×445mm×38mm
Weight 2.0kg

Connector

N-Female

Connector position

Bottom straight out

Material ABS+ aluminum parts
Color white
Production Class IP54

Operating temperature

-40℃~+ 55℃

Mounting hardware

φ40mm~φ70mm



12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management 0

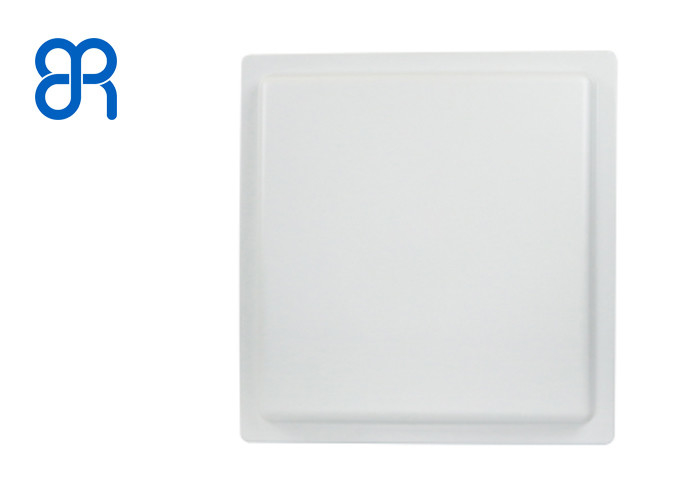

Figure 1. Antenna Photo



product dimensions



12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management 1



Radiation Patterns

12dBi Gain UHF RFID Directional Panel Antenna For Vehicle Management 2
