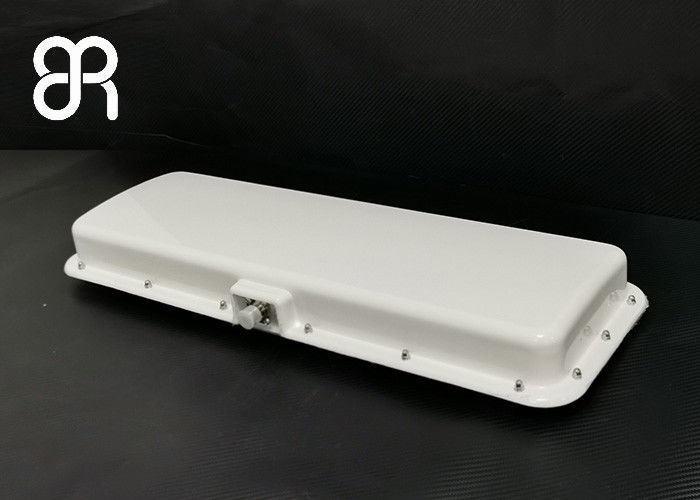

High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management

High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management

  • High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management
  • High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management
  • High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management
  • High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management
  • High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management
High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Broadradio
Model Number: BRA-49
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 15-21 work days
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Frequency: 860MHz ~ 960MHz Size: 582mm×202mm×55.5mm
Gain: 12dBi Polarization: Linear Polarization
Weight: 2.5kg Name: RFID Antenna,Long Distance RFID Antenna
Color: White Email: Lyh@brrfid.com
High Light:

White RFID Antenna

,

Linear Polarization White RFID Antenna

,

High Gain 12dBic RFID Antenna

Long Range Reading Distance For Vehicle Management High Gain 12dBic Linear Polarization White RFID Antenna



core advantages

1) The core technology RFID team comes from top universities and antenna companies in China.

2) RFID team has rich experience in UHF RFID antenna and label development

3) Advanced and efficient RFID platform, which can quickly respond to customized requirements and has a short development cycle

4) Successfully developed a variety of patented products including antennas, tags, access control and other integrated devices

Product features

1. Universal antenna suitable for RFID applications in UHF band
2, BRA-49 antenna recognition distance is far, especially suitable for vehicle management
3, linear polarization design, with narrow beam, high gain, etc.
4, the antenna material is combined with FRP and aluminum parts, the structure is firm, and the technology is excellent.
5. The antenna is suitable for vehicle management, asset management and other occasions in the UHF band.



Performance Specifications

Frequency Range 902~928MHz/ 865~868MHz
VSWR ≤1.3:1
Gain 12 dBi

Beamwidt

40°/75°
Polarization Linear Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type N-Female



Mechanical Specifications

Size 582mm×202mm×55.5mm
Weight 2.5kg
Material

Engineering Plastic ASA,Aluminums

Color white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management 0

Mounting

The BRA-49 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.



High Gain 12dBic Linear Polarization White RFID Antenna For Vehicle Management 1

3D Radiation Pattern
