Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size

Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size

Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size
video
Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Broadradio
Model Number: BRA-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Frequency: 902-928Mhz / 865~868MHz Size: 60 Mm×60 Mm×15.6 Mm
Gain: 4dBic Polarization: Circular Polarization
Weight: 25g Material: F4BM
Color: Green Connector Type: MMCX (SMA Optional)

BRA-20 small size light weight UHF RFID antenna for UHF band RFID handhelds

Product features


Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.


Main use and scope of application


The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.



Performance Specifications

Frequency Range

902MHz-928MHz(865MHz~868MHz)

VSWR ≤1.3:1
Gain ≥ 4 dBic
Radiation angle horizontal 120° × vertical 120°
Axial ratio <3dB
Polarization Circular polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type MMCX (SMA optional)



Mechanical Specifications

Size

60 mm×60 mm×15.6 mm

Weight 25g
Material

F4BM

Color green
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size 0

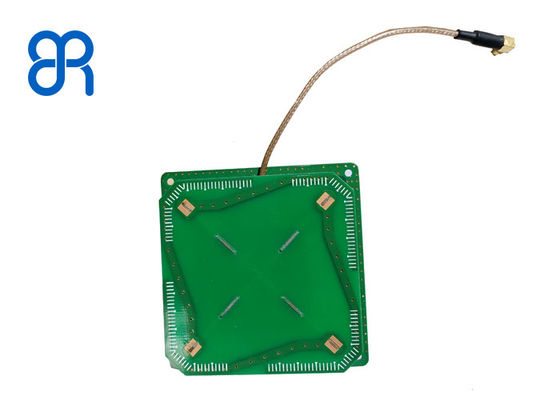

Figure 1. Antenna Photo





Mounting

Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size 1

Directional map and S-parameter map

Broadradio High Gain RFID Antenna 3dBi Circular Polarization RFID Long Range Reader Antenna UHF Small Size 2





Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
