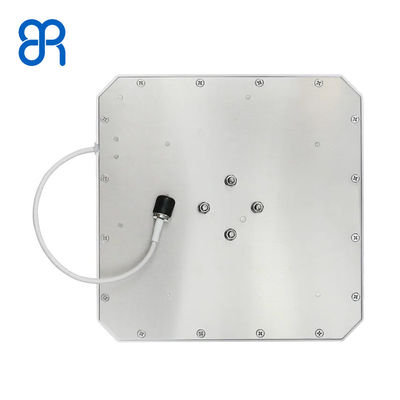

BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse

BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse

  • BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
  • BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
  • BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
  • BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
  • BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
  • BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Broadradio
Model Number: BRA-9028P
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 7 working days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Max Power: 50W Lightning Protection: DC Ground
Connector Position: Side Lead Polarization: Circular Polarization
Beamwidth: Hor:65° Ver:65° Operating Temperature: -40~55℃
Mounting Hardware(mm): φ40~φ50 VSWR: ≤1.3
High Light:

High Gain Rfid Antenna

,

Logistics Warehouse UHF RFID Antenna

,

Circular Polarization UHF RFID Antenna

Product Description:

Shenzhen Broadradio RFID Technology Co.,Ltd. is a global provider of antennas and tags solutions. With more than 10 years of expertise in antenna and tags design, we provide extensive antenna design services. This consists of concept and prototyping, production and tests.

We clearly understand that different applications have very different needs when it comes to antennas. Thus, we are conscious of the materials selection and design processes to match the demands of various applications. Broadradio is endowed to develop new antenna type, such as UHF RFID Antenna and UHF RFID Tag.



Features:

BRA-9028P is an exceptionally high performance 9dBi UHF RFID circular polarization antenna. Its use is widespread, featuring in many RFID application systems, such as those found in logistics, terminals, parking lots, retail stores, shopping malls, toll stations, portals, and anti-counterfeit solutions.

The power and reliability of BRA-9028P can be trusted in almost any application, with its ability to operate in environments with temperature ranging between -30℃~+70℃ and its impedance of 50Ω.



BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse 0



Technical Parameters:

Parameter Value
Material PC+ABS+Aluminum
Mounting Hardware(mm) φ40~φ50
Axial Ratio ≤2dB
Color White
Operating Temperature -40~55℃
Connector N-Female
Beamwidth Hor:65° Ver:65°
Weight 0.85kg
Frequency 902-928MHz
Lightning Protection DC Ground






BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse 1BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse 2BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse 3BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse 4

BRA-9028P 9dBi High Gain UHF RFID Antenna Circular Polarization for Logistics Warehouse 5
