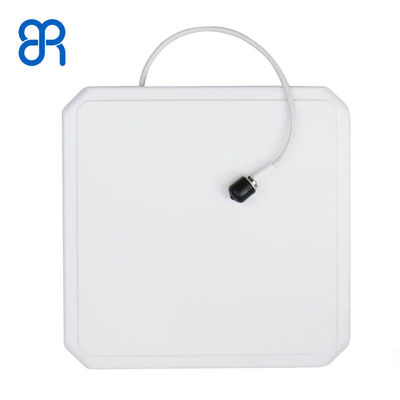

9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal

9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal

  • 9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
  • 9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
  • 9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
  • 9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
  • 9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
  • 9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Broadradio
Model Number: BRA-9028P
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 7 working days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Dimension: 258*258*33.5mm Color: White
Weight: 0.85kg Gain: 9dBi
Beamwidth: Hor:65° Ver:65° Axial Ratio: ≤2dB
Connector Position: Side Lead Mounting Hardware(mm): φ40~φ50
High Light:

9dBi UHF RFID Antenna

,

Retail Portal UHF RFID Antenna

,

Rfid Antenna Long Range

Broadradio 9dBi Antenna RFID UHF Hor 65° High Gain UHF RFID Antenna 258*258*33.5mm 0.85kg for Retail Portal

Product Description:

Shenzhen Broadradio Ltd is a worldwide antennas and portal solution provider with over 10 years of hands-on experience.

We have complete antenna design capability from concept to production to tests. We understand the different requirements of each antenna and apply the right material and method to fulfill them.

Our company is well equipped for new antenna development, including UHF RFID Antenna, Small RFID Antenna, Long Range RFID Antenna, Linear RFID Antenna, Narrow Beam Antenna, Near Field RFID Antenna etc.



Features:

BRA-9028P is a highly effective 9dBi UHF RFID antenna with circular polarization capabilities. It is a widely used device in logistics systems, RFID terminals, parking lots, retail stores, shopping malls, toll stations, checkpoint, and anti-counterfeit purposes.

BRA-9028P is an essential device for any RFID system due to its remarkable features. Its superior performance helps to improve the system accuracy and reliability. In addition, its advanced design and construction provide effective protection against radio interference.



9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal 0



Technical Parameters:

Parameter Specification
Polarization Circular Polarization
VSWR ≤1.3
Connector Position Side Lead
Color White
Max Power 50W
Axial Ratio ≤2dB
Beamwidth Hor:65° Ver:65°
Gain 9dBi
Frequency 902-928MHz
Operating Temperature -40~55℃


Applications:

Broadradio BRA-9028P UHF RFID Antenna is an ideal tool for numerous applications, ranging from asset tracking and inventory management to access control and retail checkout systems. This RFID antenna is designed to be highly reliable and durable, with a frequency range of 902-928MHz, 9dBi gain and DC ground lightning protection. It is constructed with PC+ABS+Aluminum material and features a N-Female connector for easy installation and use. With a minimum order quantity of 2pcs and standard export carton, foam and protective film packaging, it can be delivered within 7 working days after payment. Broadradio BRA-9028P UHF RFID Antenna is the perfect choice for reliable and efficient asset tracking and inventory management, access control, and retail checkout systems.





9dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal 19dBi UHF RFID Antenna Hor 65° High Gain 258*258*33.5mm 0.85kg for Retail Portal 2
