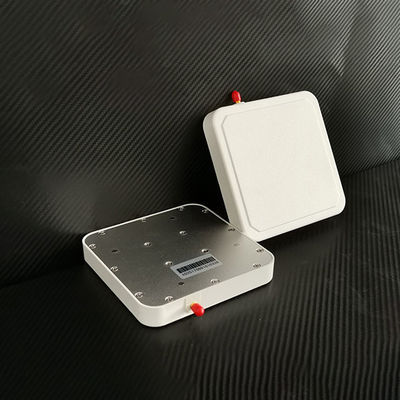

0.3KG Circular Polarization UHF RFID Reader Antenna for Warehousing Logistics Industry

Product Model

BRA-02SR Antenna

Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

Applications

BRA-02SR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

Performance Specifications

Mechanical Specifications

Figure 1. Antenna pattern

Mounting

BRA-02SR Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.

        Figure 2. Dimensions

FAQ and Cautions

BRA-02SR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-02SR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
