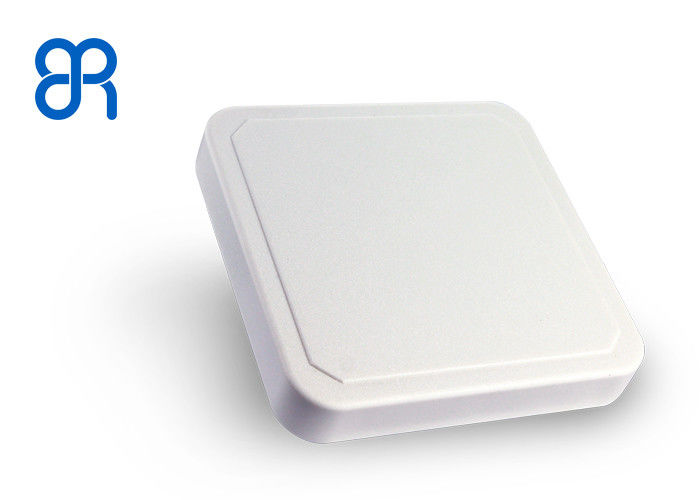

White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID
  • White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID
  • White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID
  • White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID
  • White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID
  • White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID

White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID

Place of Origin Shenzhen, China
Brand Name Broadradio
Model Number BRA-01DL
Product Details
Frequency:
902-928MHz
Size:
258*258*36mm
Gain:
9dBic
Polarization:
Cross Polarized
Name:
High Gain Antenna
Material:
Engineering Plastics ASA, Aluminum
Color:
Milk-white
Production Class:
IP67
High Light:

9dBic UHF RFID Antenna

,

RFID Cross Polarized Antenna

,

IP67 UHF RFID Antenna

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
3-5work days
Payment Terms
T/T, PayPal
Product Description

White Color 9dBic UHF RFID Antenna, Far Field Application Cross Polarized Antenna RFID

Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

It has the dual advantages of the far reading distance in the linear polarization antenna and the non-directional feature in the circular polarization antenna.

Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.



Applications

BRA-01DL Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain > 9 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Cross polarized
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

N Female



Mechanical Specifications

Size 258mm×258mm×36mm
Weight 0.91kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID 0

Figure 1. Antenna Pattern

Mounting

BRA-01DL Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.



White 9dBic UHF RFID Antenna Far Field Application Cross Polarized Antenna RFID 1

                                  Figure 2. Dimensions

FAQ and Cautions

BRA-01DL Antenna is linear polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-01DL Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
