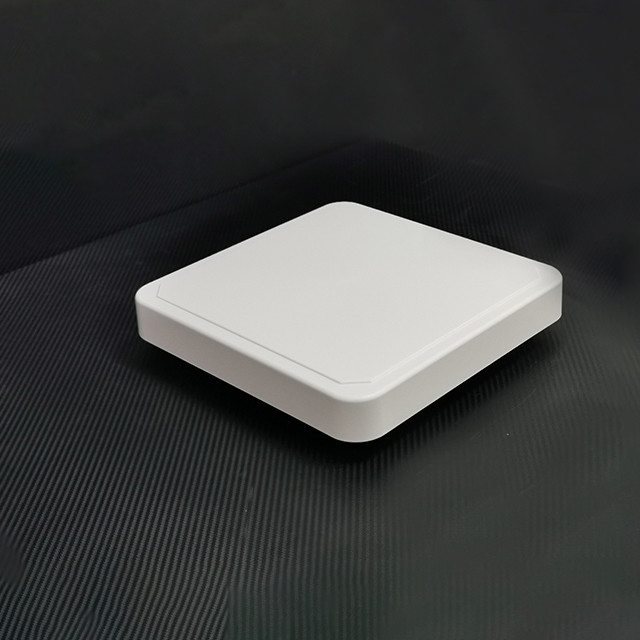

N Female Connector UHF RFID Antenna Waterproof for Severe Environments
  • N Female Connector UHF RFID Antenna Waterproof for Severe Environments
  • N Female Connector UHF RFID Antenna Waterproof for Severe Environments
  • N Female Connector UHF RFID Antenna Waterproof for Severe Environments
  • N Female Connector UHF RFID Antenna Waterproof for Severe Environments
  • N Female Connector UHF RFID Antenna Waterproof for Severe Environments

N Female Connector UHF RFID Antenna Waterproof for Severe Environments

Place of Origin Shenzhen, China
Brand Name Broadradio
Model Number BRA-01CR
Product Details
Frequency:
860-960MHz
Size:
258*258*36mm
Gain:
9dBic
Polarization:
Circular Polarization
Weight:
0.91kg (bracket Excluded)
Material:
Engineering Plastics ASA, Aluminum
Color:
Milk-white
Name:
High Gain RFID Antenna
High Light:

N Female Connector RFID Antenna

,

Aluminum RFID Reader Antenna

,

IP67 Waterproof UHF RFID Antenna

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
2-5 work days
Payment Terms
T/T, Paypal
Product Description

UHF RFID Antenna for Severe Environments, Waterproof Design, N Female Connector



N Female Connector UHF RFID Antenna Waterproof for Severe Environments 0



Product Applications



BRA-01CR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

Product Function and Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.



Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 9 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type N Female



Mechanical Specifications

Size 258mm×258mm×36mm
Weight 0.91kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



N Female Connector UHF RFID Antenna Waterproof for Severe Environments 1

Figure 1. Antenna back picture

Mounting

BRA-01CR Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.

N Female Connector UHF RFID Antenna Waterproof for Severe Environments 2

FAQ and Cautions

BRA-01CR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-01CR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.



Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.

N Female Connector UHF RFID Antenna Waterproof for Severe Environments 3
