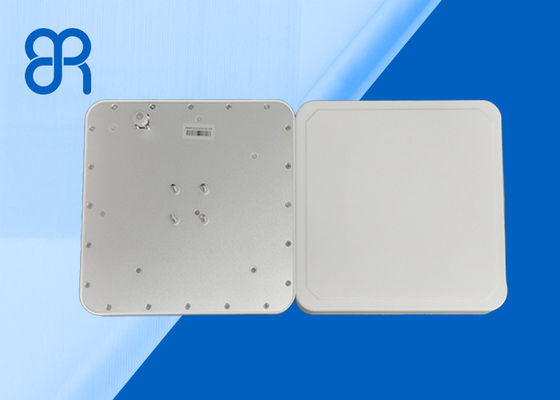

Outdoor 9dBic Circular Polarization UHF RFID Antenna Waterproof Small Long Range

Outdoor 9dBic Circular Polarization UHF RFID Antenna Waterproof Small Long Range

Outdoor 9dBic Circular Polarization UHF RFID Antenna Waterproof Small Long Range
video
Outdoor 9dBic Circular Polarization UHF RFID Antenna Waterproof Small Long Range
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Broadradio
Model Number: BRA-01CR
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 7 working days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
H Side HPBW: 70° Frequency: 902-928MHz
Connector: N-Female Weight: 0.91kg (bracket Excluded)
Impedance: 50±1Ω Gain: 9dBic
Relative Humidity: 5%~95% VSWR: ≤1.3:1
High Light:

9dBic Outdoor UHF RFID Antenna

,

Waterproof Small UHF RFID Antenna

,

IP67 Circular Polarization Antenna

Outdoor 9dBic Circular Polarization UHF RFID Antenna Waterproof Small Size Long Range RFID Antenna

Product Description:

UHF RFID Antenna is a passive long range rfid antenna with 0.91 kg weight (bracket Excluded). It has N-Female connector and 9dBic gain with VSWR less than 1.3:1. It has an E side HPBW of 70°, providing excellent performance in the UHF RFID frequency band.

This long range rfid antenna is designed for read/write applications in the 860-960 MHz frequency band, making it suitable for a wide range of RFID applications. With its high gain and wide beamwidth, it can provide a reliable and stable read/write performance in long range environments.

This UHF RFID Antenna is an ideal choice for those seeking a reliable and cost-effective solution for their RFID applications. It is suitable for both indoor and outdoor applications and can be used in a variety of applications such as asset tracking, warehouse management, and other RFID applications.



Outdoor 9dBic Circular Polarization UHF RFID Antenna Waterproof Small Long Range 0

Features:

  • Product Name: UHF RFID Antenna
  • Dimension: 258*258*36mm
  • H side HPBW: 70°
  • VSWR: ≤1.3:1
  • Production Class: IP67
  • Color: White
  • Keywords: antenas rfid uhf, passive rfid antenna, antenas rfid uhf, ip67 antenna


Technical Parameters:

Parameter Value
Dimension 258*258*36mm
Storage Temperature -40℃~+ 85℃
H side HPBW 70°
Weight 0.91kg (bracket Excluded)
E side HPBW 70°
Frequency 902-928MHz
Material Engineering Plastics ASA, Aluminum
Operating Temperature -40℃~+ 85℃
VSWR ≤1.3:1
Color White


Applications:

Broadradio's BRA-01CR UHF RFID Antenna is a passive RFID antenna designed for a variety of applications. The antenna features a 70° horizontal HPBW, circular polarization, and a 9dBic gain. It is a compact unit, measuring 258*258*36mm, and is resistant to humidity levels between 5% and 95%.BRA-01CR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

This antenna is suitable for a wide range of applications, including asset tracking, warehouse management, access control, and retail inventory management. It is also ideal for manufacturing, aerospace, and automotive industries requiring a reliable UHF RFID antenna.

Broadradio's BRA-01CR UHF RFID Antenna is available in packs of 2pcs, shipped in standard export cartons with foam and protective film. Delivery time is 7 working days, and payment is accepted through T/T and PayPal.



Customization:

We provide customized service for UHF RFID Antenna. Our brand name is Broadradio and its model number is BRA-01CR. It is made in Shenzhen, China. The minimum order quantity is 2pcs. The packaging details are standard export carton, foam and protective film. We guarantee the delivery time within 7 working days. The payment terms are T/T, PayPal. It has circular polarization. The dimension is 258*258*36mm. It can tolerate relative humidity from 5% to 95%. The maximum gain is 9dBic and the H side HPBW is 70°. We provide the best quality antenna rfid and rfid antenna for your needs.



Support and Services:

UHF RFID Antenna provides technical support and services to ensure customer satisfaction and the best product experience:

  • 24/7 customer support
  • On-site installation and maintenance
  • Software upgrades and updates
  • Troubleshooting and repair services
  • Extended warranty options
  • Data backups and recovery


FAQ:

Q1: What is the brand name of the UHF RFID Antenna?

A1: The brand name of the UHF RFID Antenna is Broadradio.

Q2: What is the model number of the UHF RFID Antenna?

A2: The model number of the UHF RFID Antenna is BRA-01CR.

Q3: Where is the UHF RFID Antenna manufactured?

A3: The UHF RFID Antenna is manufactured in Shenzhen, China.

Q4: What is the minimum order quantity of the UHF RFID Antenna?

A4: The minimum order quantity of the UHF RFID Antenna is 2pcs.

Q5: What is the packaging details of the UHF RFID Antenna?

A5: The packaging details of the UHF RFID Antenna is Standard Export Carton, Foam and Protective Film.
