902-928MHz Advanced RFID Gate Scanner with ISO18000-6C Protocol for Access Control

902-928MHz Advanced RFID Gate Scanner with ISO18000-6C Protocol for Access Control

902-928MHz Advanced RFID Gate Scanner with ISO18000-6C Protocol for Access Control
902-928MHz Advanced RFID Gate Scanner with ISO18000-6C Protocol for Access Control
Product Details:
Place of Origin: shenzhen
Brand Name: broadradio
Model Number: BRC-04G
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $1180-1300
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 7 working days
Contact Now
Detailed Product Description
Storage Temperature: -30℃~70℃ Frequency: UHF902MHz~928MHz
Operating Temperature: -20℃~+60℃ Interface: RS-232(DB9),RJ45
Type: Gate MeiyReader Power Consumption: Approx. 45W
Size: 1370×370×62mm (per Pcs) Name: RFID Gate Reader,RFID Acrylic Access Control
High Light:

928MHz RFID Gate Scanner


ISO18000-6C Protocol RFID Gate Scanner


RJ45 RFID Portal Reader

Product Description:

BRC-04G Pro is a high performance acrylic UHF access control system. The system uses a combination of phase controlled antenna and positioning algorithm to judge the direction of label movement, accurately distinguish between the field and the field label, and has good anti-leakage reading and misreading performance. Introducing the RFID Portal Checker – the perfect doorway reader for your UHF RFID needs. This reader is designed to support the ISO18000-6C protocol, operating in the UHF902MHz~928MHz frequency range. With dimensions of 1370×370×62mm, this reader is robust and durable, while also offering superior performance in a wide range of temperatures, from -20℃~+60℃.

Whether you're looking for a reliable RFID Doorway Reader or a UHF Gate Reader, the RFID Portal Checker is the perfect choice. This reader is designed to offer superior performance and reliability, making it the ideal solution for any business or organization that requires an RFID reader for their doorway.

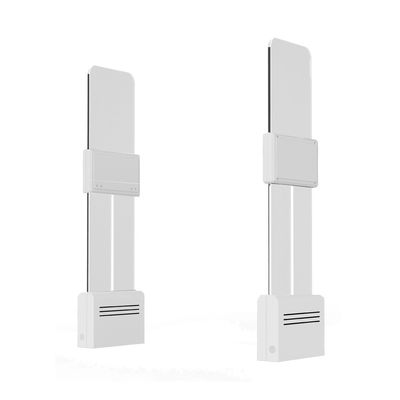

902-928MHz Advanced RFID Gate Scanner with ISO18000-6C Protocol for Access Control 0


  • Product Name: RFID Portal Reader
  • Antenna: Phased Array Antenna
  • Recommended width per channel: 0.8~1.5m(maximum 2.2m)
  • Power Supply: AC 220V±10% 47~63 Hz
  • Storage Temperature: -30℃~70℃
  • Name: RFID Gate Reader,rfid Acrylic Gate Reader
  • Specialty: RFID Doorway Reader, rfid gate reader, uhf rfid gate reader

Technical Parameters:

Name RFID Gate Reader
Type Reader
Frequency UHF902MHz~928MHz
Material Acrylic +ABS+ Sheet Metal
Power Consumption Approx. 45W
Recommended width per channel 0.8~1.5m(maximum 2.2m)
Size 1370×370×62mm (per Pcs)
Storage Temperature -30℃~70℃
Operating Temperature -20℃~60℃
Antenna Phased Array Antenna


RFID Gate Recognizer, with the model number BRC-04G, is the perfect choice of RFID entry recognizer for any access control system. Designed by the renowned Shenzhen brand, this RFID Gate Recognizer is made with high-quality acrylic material, ABS plastic, and sheet metal. It guarantees a power supply of AC 220V±10% 47~63 Hz, and an operating temperature of -20℃~+60℃. It is reliable and sturdy, and is sure to last for a long time.

RFID Gate Recognizer is very easy to install and use. It is the perfect choice for any busy business or organization, as it is able to provide a secure experience. The RFID Gate Recognizer has been tested and certified to meet industry standards, and it can provide reliable and accurate access control. It is also very affordable, starting from as low as 1300.

The RFID Gate Recognizer is available in a standard export carton, with foam and protective film for added protection. It also offers the fastest delivery time of 7 working days. With all these features, the RFID Gate Recognizer is the perfect choice for any access control system.


Characteristic function:

 independent intellectual property design
 Supports the server mode for multi-channel control
 The built-in Linux4.1 OS has better processing capability
 Supports the EPC C1 G2 (ISO18000-6C) protocol
 Operating frequency 902~928MHz (customizable 865~868MHz)
 Output power 30dbm (adjustable)
 Strong multi-label reading ability, infrared triggered mode reading rate of more than 99%
 Phase-controlled combination antenna and positioning algorithm can accurately locate the label area and determine the direction of label movement
 Support alarm volume software adjustment, sensitive alarm, safe and reliable
 The RFID security door is placed at a wider distance, up to 2.2m
 two inputs and two outputs, high scalability
 Standard personnel entry and exit judgment Stylish appearance, easy assembly, cool lighting eye-catching
UHF RFID Gate Reader for RFID Access Portal and Entrance Reader

Are you looking for a reliable RFID Access Portal and Entrance Reader? RFID acrylic access control, model BRC-04G is a great choice for you. It is a UHF RFID Gate Reader with frequency UHF902MHz~928MHz and power consumption of Approx. 45W. It is equipped with RS-232(DB9) and RJ45 interface and recommended width per channel is from 0.8~1.5m(maximum 2.2m). It is packed with Standard Export Carton, Foam and Protective Film for secure delivery. The minimum order quantity is 1pcs and the price is 1300. Delivery time is 7 working days.


Support and Services:

RFID Portal Reader Technical Support and Service

We provide comprehensive technical support and services for our RFID Portal Reader. Our team of experienced professionals is available to assist you with any technical inquiries or issues you may have.

We offer a wide range of services, including:

  • Installation and setup assistance
  • Hardware and software troubleshooting
  • Data management and analysis
  • Product upgrades and updates
  • System maintenance and support

Our team is also available to provide custom solutions to meet your specific needs.

If you have any questions or need assistance, please contact us at


Packing and Shipping:

The RFID Portal Reader is packaged and shipped as follows:

  • The product is packaged in a cardboard box with protective foam inserts.
  • The box is placed in a sealed plastic bag for extra protection.
  • The box is then placed in a cardboard shipping box with additional padding.
  • The shipping box is then securely sealed and labeled.
  • The product is shipped via a reputable shipping carrier.


Q & A about RFID acrylic access control

Q1: What is the Brand Name and Model Number of RFID acrylic access control ?
A1: The Brand Name is RFID acrylic access control and the Model Number is BRC-04G.

Q2: Where is the Place of Origin of the product?
A2: The Place of Origin of the product is shenzhen.

Q3: What is the Minimum Order Quantity?
A3: The Minimum Order Quantity is 1pcs.

Q4: What is the Price of the product?
A4: The Price of the product is $1180-1300.

Q5: What is the Packaging Details and Delivery Time?
A5: The Packaging Details is Standard Export Carton, Foam and Protective Film, and the Delivery Time is 7 working days.
