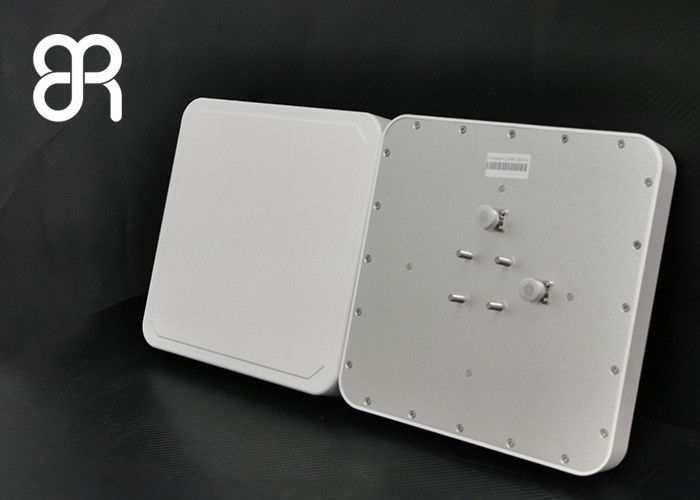

High Gain N Female Connector IP67 Linear RFID Antenna

High Gain N Female Connector IP67 Linear RFID Antenna

High Gain N Female Connector IP67 Linear RFID Antenna
video
High Gain N Female Connector IP67 Linear RFID Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-01DL
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Name: Linear RFID Antenna,9dBi RFID Antenna Size: 258mm×258mm×36mm
Weight: 0.91kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Production Class: IP67
Operating Temperature: -40℃~+ 85℃ Email: Cliff.lee@broadradio.com.cn
High Light:

long range rfid reader antenna

,

linear polarization antenna

BRA-01DL High Gain And Low VSWR Linear RFID Antenna, With N Female (2 Input Port) Connector



Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.

Product Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

It has the dual advantages of the far reading distance in the linear polarization antenna and the non-directional feature in the circular polarization antenna.

Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.



Product Applications

BRA-01DL Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



High Gain N Female Connector IP67 Linear RFID Antenna 0

Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain > 9 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Cross polarized (double polarized)
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type N Female (2 Input Port)



Packaging accessories

Host: BRA-01DL antenna

Accessories: L plate (mounting bracket), dog teeth, M6 U-bolt, M6 nut, spring washer, flat washer



Product advantages

1) A wide range of products to meet various distance requirements;

2) Independent research and development of products, free technical and after-sales service;

3) Source factory direct sales, the price is 15%-20% lower than other companies;

4) One-stop service for product customization design, testing and production
