High Gain RFID Antenna
>
|
|
| Place of Origin | China Shenzhen |
| Brand Name | broadradio |
| Model Number | BRA-15 |
Impact resistance, anti-vibration, wide beam, high gain, low VSWR and etc.;
Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
BRA-15 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
| Frequency Range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
|
Gain |
>8dBic |
|
Beamwidth |
89°x89° |
|
Polarization |
Circular Polarization |
|
Front-to-Back Ratio |
20dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
RP-TNC Female |
| Size | 200mm×200mm×32mm |
| Weight | 0.85kg (bracket excluded) |
| Material |
Aluminum alloy, engineering plastics ASA |
| Color |
Milk-white |
| Production Class | IP65 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

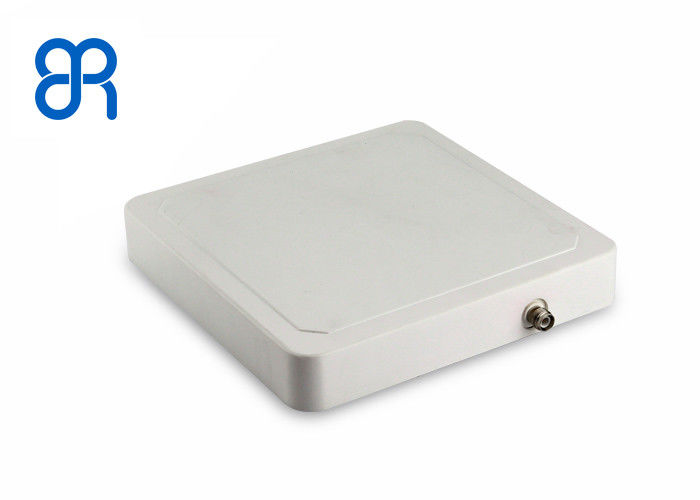

Figure 1. Antenna Photo
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.
