Product Details:
Payment & Shipping Terms:
|
Name: | UHF RFID Antenna,Linear RFID Antenna | Size: | 258mm×258mm×36mm |
---|---|---|---|
Weight: | 0.91kg (bracket Excluded) | Material: | Engineering Plastics ASA, Aluminum |
Color: | Milk-white | Production Class: | IP67 |
Operating Temperature: | -40℃~+ 85℃ | Storage Temperature: | -40℃~+ 85℃ |
High Light: | long range rfid reader antenna,linear polarization antenna |

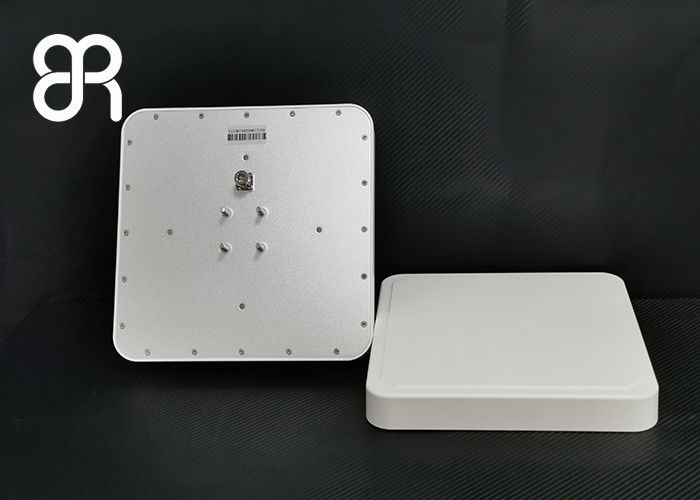

BRA-01L 902MHz~928MHz 9 dBic UHF Linear RFID Antenna,VSWR ≤1.3:1 Connector Type N-50KFD
1) Management team of Japanese-funded enterprises to ensure production order
2) Excellent import operation and test equipment to ensure product accuracy
3) Efficient job management process to ensure production efficiency
4) Strict quality control mechanism to ensure product quality
5) Passed ISO9001: 2018 quality management system certification
Frequency Range | 902MHz~928MHz |
VSWR | ≤1.3:1 |
Gain | > 9 dBic |
H side HPBW | 70° |
E side HPBW | 70° |
Polarization | Linear Polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | N-50KFD (N-type female female) |
1) Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
2) Mechanical Properties: pleasing appearance with medium size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
3) BRA-01L Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
BRA-01L Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is an optional accessory and customers can choose it according to actual need.
