High Gain RFID Antenna
>
|
|
| Place of Origin | China |
| Brand Name | broadradio |
| Model Number | BRA-01SR |

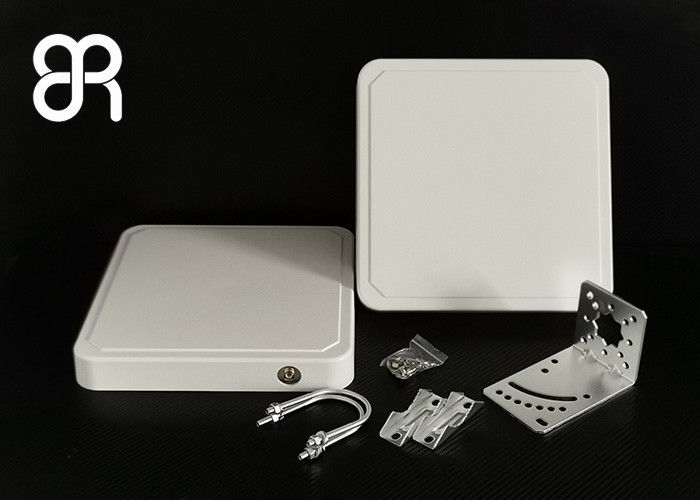

BRA-01SR Side Feed Design High Gain RFID Antenna With Low Profile, Excellent VSWR,Anti-UV Aging
(1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.
(2)Mechanical Properties: circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.
(3)Product advantage: low profile, excellent VSWR and axial ratio parameter, anti-UV aging and high protection class.
BRA-01SR Antenna is of convenient application in middle-distance parking management system, archives management, logistic management, asset management, storage management, personnel management and other IoT fields. Applications: warehouse, logistics distribution center, airport, hospital, logistics terminal, goods transfer belt, file cabinet and etc.
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 8.5 dBic |
|
Polarization |
Right-hand |
| Axial ratio | ＜3 dB |
| Front-to-Back Ratio | ≥ 15dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
RP-TNC Female |
|
Connector Position |
Side |
| Size | 258mm×258mm×36mm |
| Weight | 0.8kg (bracket excluded) |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP65 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |
BRA-01SR Antenna can be mounted on any steel frame or column with 3M adhesive or customized bracket and be connected with reader through coaxial cable. It can be installed easily according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is not original accessory.
