Name: Multi Channel Library UHF RFID Security Gate Reader For Supermarkets
Brand: Broadradio
SKU: BRC-04BL
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (112 reviews)

Home Products RFID Portal Reader

Multi Channel Library UHF RFID Security Gate Reader For Supermarkets

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Broadradio
Model Number:	BRC-04BL

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3-5works
Payment Terms:	T/T，PayPal

Contact Now

Detailed Product Description

Name:	RFID Portal Reader	Protocol:	ISO 18000-6C
Size:	1370×370×77mm	Weight:	22kg
Operating Temperature:	-20℃～60℃	Storage Temperature:	-30℃～70℃
Power Supply:	AC 220V±10% 47～63 Hz	Frequency:	920MHz～928MHz
High Light:	UHF RFID Security Gate Reader , Library RFID Security Gate Reader , Multi Channel RFID Gate Reader

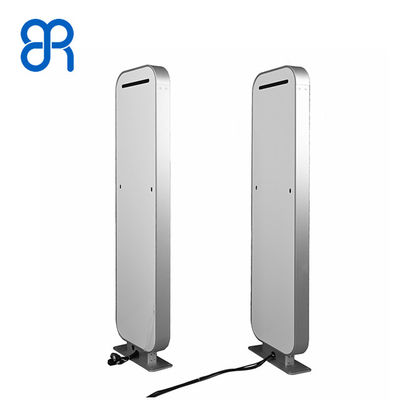

Multi-Channel Library UHF RFID Access Control System High Speed Reading UHF RFID Security Gate Reader For Supermarkets

BRC-04BL UHF channel access control system supports EPC C1G2 (ISO18000-6c) protocol. It internally integrates high gain antennas, control module and high reading/writing speed reader which based on Impinj R2000. This system has high-speed read tag performance and good reading/writing regional control ability, provide standard RS232 or RJ45 interface, convenient connected to software platform.

Multi Channel Library UHF RFID Security Gate Reader For Supermarkets 0

Product Features
Independent intellectual property design Support server mode to achieve multi-channel control Support EPC C1 G2(ISO18000-6C)protocol Frequency 902~928MHz(or customized 865~868MHz) Output power 30dbm(adjustable) Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable Wider RFID safe door placing distance, maximum 2.2m Motion direction judgment optional (by infrared diode pair) LED display optional for showing label numbers New label reading prompt function optional Burglar alarm function optional Fashion appearance, easy assembly
Product Specifications
Size:	1370×370×77mm (per pcs)
Weight:	22KG(per pcs)
Frequency:	920MHz～928MHz
Protocol:	ISO 18000-6C
Operating Temperature:	-20℃～60℃
Storage Temperature:	-30℃～70℃
Ambient humidity:	5%～95%RH no condensation
Power Supply:	AC 220V±10% 47～63 Hz
Power Consumption:	approx. 45W
Interface:	RS-232(DB9),RJ45
Recommended width per channel:	0.8～1.5m(maximum 2.2m)
Access Control Components (N channels)
Rack N+1 pcs (N channels) 9dBic narrow beam antennas 4N pcs Control panel and power module ≥N/2 pcs Read-write module N pcs RS232 serial port N pcs Ethernet port N pcs Exchange board ＞N ports RF feeder 4N pcs Infrared radiation 2N sets Infrared connector 2N sets
Applications
Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications.

Multi Channel Library UHF RFID Security Gate Reader For Supermarkets 1

Broadradio is a high-tech enterprise focusing on RFID, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of RFID production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
