Long Range UHF Integrated RFID Reader with 9dBi Circular Polarization Impinj E710

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Broadradio
Model Number:	BRD-01LI

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3-5work days
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Name:	UHF RFID Integrated Reader, UHF RFID Reader	Size:	258mm(L)258mm(W)36mm(H)
Weights:	1.2KG	Chip:	Impinj Indy E710
Built-in Antenna:	Circular Polarization 9dBi, VSWR≤1.3：1	Processor:	ARM Cortex-M3 108MHz
Housing Material:	Aluminum+ABS
High Light:	9dBi UHF Integrated RFID Reader , 9dBi Circular Polarization RFID Reader , Impinj E710 Integrated RFID Reader

Introduction

BRD-01LI is a UHF RFID reader with integrated 9dBic antenna. It is full compatible with ISO18000-6C protocol. The working frequency band covers CHN 920MHz～925MHz, FCC 902MHz ~ 928MHz and ETSI 865MHz ~ 868MHz. For the output power 0dBm ~ 33dBm is optional. It has the advantages of high portability, long recognition distance, fast reading speed, high accuracy, strong anti-interference ability, excellent protection performance and easy to installation.

Compared with the traditional fixed reader, this reader device has obvious advantages in terms of convenience and integration efficiency, so that customers do not need to consider the coordination of the reader and the antenna. It can be widely used in many fields such as warehouse management, personnel management, asset management, commercial retail and automatic vehicle identification.

Features

 Impinj E710 inside

 Built-in embedded operating system, customizable and scalable, convenient for customized development

 supports multiple communication interfaces such as RJ-45/RS-232/RS-485

 Built-in 9dBi circular polarized antenna

 Industrial, easy-to-install I/O port connectors

 Special application project custom interface / data transmission can be extended

Applications

 Intelligent Vehicle Management such as vehicle access control management, parking lots, and automatic vehicle weighing industry.

 Production automation, visualization management.

 Logistics industry such as container management, pallet management.

 Electronic tickets and personnel access control.

 Asset access management.

Main Technical Performance Indicators

Model	BRD-01LI
Hardware, OS and Firmware Management
Processor	ARM Cortex-M3 108MHz
Storage	Flash 128KB
Firmware upgrade	Demo software/Remote upgrade
SDK	Windows platform– .Net / .Net core / C++ / Java SDK
Physical Parameters
Sizes	258mm(L)258mm(W)36mm(H)
Weights	1.2KG
Housing material	Aluminum+ABS
RFID
Chip	Impinj Indy E710
Air protocol	ISO/IEC 18000-6B, 6C/EPC C1Gen2
Frequency	CHN: 920MHz～925MHz, 840MHz～845MHz
	FCC: 902MHz～928MHz
	ETSI: 865MHz～868MHz
Built-in antenna	Circular polarization 9dBi, VSWR≤1.3:1
Output power	33dBm±1 dBm
Channel bandwidth	＜200KHz
Frequency stability	≤±10ppm
Reading range	0m～30m (related to factors such as transmit power, antenna type, tag type and application environment)
Write distance	0m～15m (related to factors such as transmit power, antenna type, tag type and application environment)
Label recognition speed	＞800times/second
Features	Support RSSI/support multiple tags/intensive reading and writing/online upgrade/tag data filtering
Operating mode	Fixed frequency/frequency hopping selectable
Connection
Communication interface	RJ45, RS-232, RS-485, Wiegand 26/34/66
I/O interface	1 input, 1 12V, 2 5V output
Power supply	DC 12V/3.33A
Environmental Parameters
Operating temperature	-20℃～+70℃
Storage temperature	-40℃～+85℃
Operating humidity	5%RH～95%RH (non-condensing)
Protection class	IP65

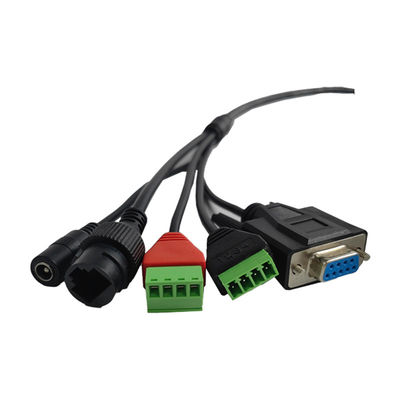

Interface Signal Definition

1. Black 4pin terminal

Terminal No.	Signal Name	Signal Definition
1	IN	External Input(5-24V)
2	B	RS-485 Negative
3	A	RS-485 Positive
4	GND	Ground

2.Red 4pin terminal

Terminal No.	Signal Name	Signal Definition
1	D1	Wiegand 1
2	D0	Wiegand 0
3	OUT	Output(12V)
4	GND	Ground

Dimensions

Long Range UHF Integrated RFID Reader with 9dBi Circular Polarization Impinj E710 1
