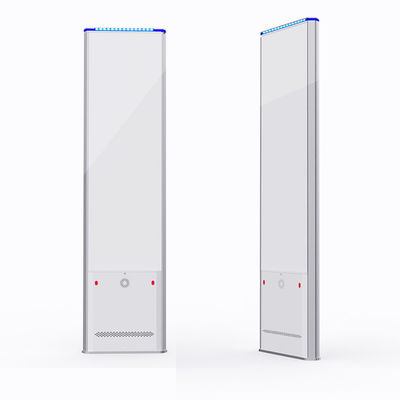

RFID Portal Reader
>
|
| Place of Origin | Shenzhen, China |
| Brand Name | Broadradio |
| Model Number | BRC-04L |
| Product Features | |
|
Independent intellectual property design;
Support server mode to achieve multi-channel control;
Support EPC C1 G2(ISO18000-6C)protocol;
Frequency 902~928MHz (or customized 865~868MHz);
Output power 30dbm (adjustable);
Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode;
Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot;
Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable;
Wider RFID safe door placing distance, maximum 2.0m;
Motion direction judgment optional (by infrared diode pair);
LED display optional for showing label numbers;
New label reading prompt function optional;
Fashion appearance, easy assembly;
|
|
| Product Specifications | |
| Size: |
1450 × 370 × 75 mm (per piece)
|
| Weight: |
10 KG (per piece)
|
| Frequency: |
902 MHz ~ 928 MHz
|
| Protocol: | ISO 18000-6C |
| Operating Temperature: | -20℃～60℃ |
| Storage Temperature: | -30℃～70℃ |
| Ambient humidity: | 5%～95%RH, no condensation |
| Power Supply: |
AC 220 V±10% 47 ~ 63 Hz
|
| Power Consumption: | approx. 45W |
|
Communication
Interface: |
RS-232(DB9),RJ45 |
| Recommended width per channel: | 0.8～1.5m(up to 2.2m) |
| Access Control Components (N channels) | |
|
Rack N+1 pcs (N channels)
9dBic narrow beam antennas 4*N pcs
Control panel and power module≥N/2 pcs
Read-write module N pcs
RS232 serial port N pcs
Ethernet port N pcs
Switch>N port
RF feeder 4*N pcs
Infrared radiation 2*N sets
Infrared connector 2*N sets
|
|
| Applications | |
| Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications. | |
Shenzhen Broadradio RFID Technology Co.,LTD. (hereinafter referred to as "Broadradio") is a global leader in UHF RFID hardware solutions. We are a national high-tech enterprise. For 15 years, we have been committed to the RFID and production on tags, antennas, Portals, and integrated equipment products. Until now, our products and system service have been offered to more than 60 countries and regions. Our products are widely used in archives, books, electricity, logistics, warehousing, retail, assets, medical, manufacturing and other fields.
