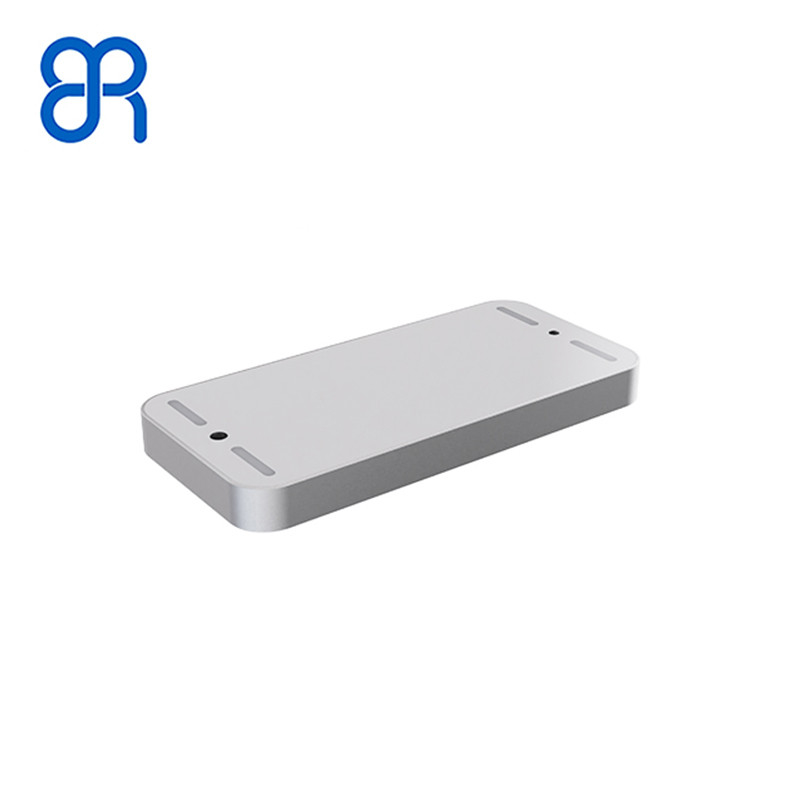

Top/Side Mounted UHF RFID Gate Reader 902MHz～928MHz RFID Access Portal

Product Description:

RFID Portal Reader is an advanced UHF technology-based access control system that is designed to maximize efficiency and security. Built-in phased combination antenna, aided by positioning algorithm can judge the direction of label movement, accurately distinguish between the field and off-site labels, anti-leakage reading and misreading performance is good, with non-inductive trigger, identification distance, multi-label recognition ability, strong anti-interference ability, good scalability and easy installation and use.It is equipped with a LINUX system, a phased combination antenna, ISO18000-6C protocol, and an Aluminum +ABS material. By incorporating RFID access control, RFID doorway reader and RFID portal reader, the system guarantees a reliable and secure access control. Furthermore, it is easy to install and operate with its intuitive interface. Therefore, the RFID portal reader is an ideal choice for any security and access control applications.

Features:

• Product Name: RFID Portal Reader
• Humidity: 5%~95%
• Name: RFID Gate Reader,rfid Acrylic Gate Reader
• Weight: Approx. 7.5KG (without Support)
• Material: Aluminum +ABS
• Recommended width per channel: 0.8～1.5m(maximum 2.2m)
• Independent intellectual property rights design, with LINUX system
• Supports the server mode for multi-channel control
• Supports the EPC C1 G2 (ISO18000-6C) protocol
• Operating frequency 902~928MHz (customizable 865~868MHz)
• Output power 33dbm (adjustable)
• built-in phased combination antenna, can judge the label moving direction; The top mounting height is 3-5 meters, and the covering channel width is 2.5 to 3 meters
• Strong multi-label reading ability, the missed read rate is less than 1% in infrared triggered mode;

Technical Parameters:

Applications:

The RFID Entrance Reader (BRC-05A Pro) from Shenzhen is an ideal choice for access control and asset tracking. It is an integrated RFID reader system that can detect, read and track RFID tags with a frequency of UHF902MHz～928MHz. It is equipped with a Phased Combination Antenna and a LINUX System for efficient and accurate tracking. The BRC-05A Pro has a storage temperature range of -30℃～70℃, which makes it suitable for use in different environments. The system also supports ceiling, ceiling and wall mount installation mode. The minimum order quantity for the product is 1pcs, and comes with standard export carton, foam and protective film packaging. The product is available at a price of 980 and delivery time of 7 working days.

The BRC-05A Pro is an ideal choice for businesses looking for a reliable RFID Gate Scanner and Access Portal. Its advanced features and high performance make it an ideal choice for access control and asset tracking. The product is easy to install and use, and can be used for both indoor and outdoor applications. It is a reliable and cost-effective solution for businesses looking to secure their premises.

Support and Services:

RFID Portal Reader provides technical support and service for customers. Our technical support staff is available 24/7 to help with any issue. We offer both telephone and online support. Our online support includes an FAQ, chat support and email support.

Our technical support staff has extensive knowledge of RFID Portal Reader products and can help you with installation, troubleshooting, and any other technical issues. We also offer a comprehensive repair service to replace any parts that may have become faulty or damaged.

We also offer extended warranties on our products to ensure that you can continue to use your RFID Portal Reader product with confidence and peace of mind. If you need additional support, our team of experienced technicians are here to help.
