White Color UHF Small RFID Antenna 902-928MHz For RFID Handheld Reader Gain >2dBic

White Color UHF Small RFID Antenna 902-928MHz For RFID Handheld Reader Gain >2dBic

White Color UHF Small RFID Antenna 902-928MHz For RFID Handheld Reader Gain >2dBic
video
White Color UHF Small RFID Antenna 902-928MHz For RFID Handheld Reader Gain >2dBic
Product Details:
Place of Origin: China Shenzhen
Brand Name: Broadradio
Model Number: BRA-04
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic inner boxer and outer carton
Delivery Time: 5-8works
Payment Terms: T/T, Paypal
Contact Now
Detailed Product Description
Name: Small RFID Antenna,Handheld RFID Antenna Size: 50mm*50mm*8mm
Gain: >2dBic Connector Type: SMA (IPX Optional)
Weight: 35g Material: FR4, Ceramic
Color: White Email: Cliff.lee@broadradio.com.cn
High Light:

small uhf antenna

,

rfid reader antenna

BRA-04 White Color UHF Small RFID Antenna 902-928MHz For RFID Handheld Reader Gain >2dBic

Product advantages

1) A wide range of products to meet various distance requirements;

2) Independent research and development of products, free technical and after-sales service;

3) Source factory direct sales, the price is 15%-20% lower than other companies;

4) One-stop service for product customization design, testing and production

Product Function and Features

Electrical Properties: It is for UHF RFID handheld terminal applications with normal gain and low VSWR.

Mechanical Properties: small size and suitable for various severe environments

Product Applications

BRA-04 Antenna is of convenient application in UHF RFID handheld terminals and other ternimal application fields.



Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1

Gain

>2dBic

Polarization

Circular Polarization

Axial ratio

<3dB

Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA (IPX optional)



Mechanical Specifications

Size 50mm×50mm×8mm
Weight 35g
Material

Ceramic, F4B

Color

white

Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



White Color UHF Small RFID Antenna 902-928MHz For RFID Handheld Reader Gain >2dBic 0

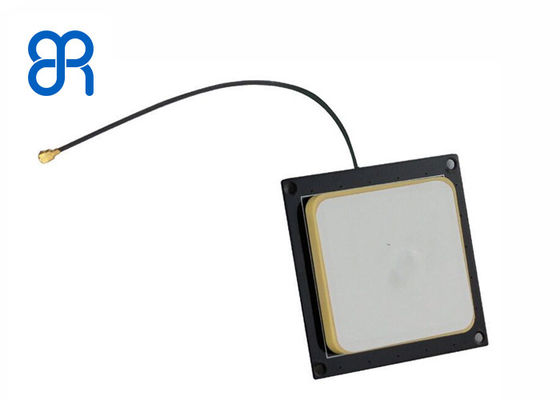

Figure 1. Antenna Photo



Antenna Pattern and S Parameter



BRA-04 Antenna Pattern and S Parameter



Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.
