Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution

|
| Place of Origin: | Shenzhen, China |
| Brand Name: | Broadradio |
| Model Number: | BRA-04 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic inner boxer and outer carton |
| Delivery Time: | 5-8works |
| Payment Terms: | T/T, Paypal |
| Frequency: | 902MHz～928MHz | Size: | 50mm*50mm*8mm |
|---|---|---|---|
| Gain: | >2dBic | Axial Ratio: | <3dB |
| Weight: | 35g | Name: | UHF Reader Antenna |
| Color: | White | Connector Type: | SMA (IPX Optional) |
| High Light: | 2dBic RFID Ceramic Antenna,SMA Connector RFID Ceramic Antenna,928MHz UHF RFID Antenna |
||
BRA-04 Handheld Antenna
Electrical Properties: It is for UHF RFID handheld terminal applications with normal gain and low VSWR.
Mechanical Properties: small size and suitable for various severe environments.
BRA-04 Antenna is of convenient application in UHF RFID handheld terminals and other ternimal application fields.
| Frequency range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
|
Gain |
>2dBic |
|
Polarization |
Circular Polarization |
|
Axial ratio |
<3dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector type |
SMA (IPX optional) |
| Size | 50mm×50mm×8mm |
| Weight | 35g |
| Material |
Ceramic, F4B |
| Color |
white |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

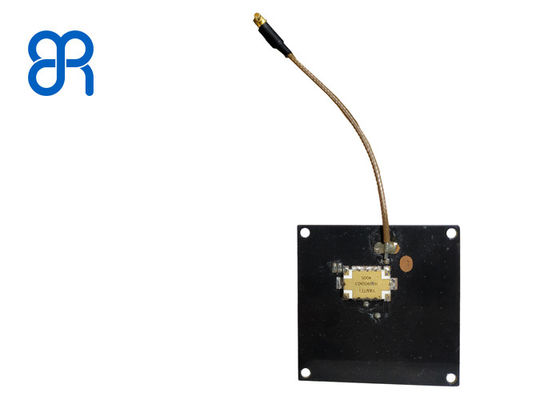

Figure 1. Antenna Picture
Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
Contact Person: Mr. Cliff.lee
Tel: +86 137 2186 9531
Fax: 86-755-26651609
