860MHz~960MHz 3dBic UHF Small RFID Antenna for Handheld Reader

860MHz~960MHz 3dBic UHF Small RFID Antenna for Handheld Reader

860MHz~960MHz 3dBic  UHF Small RFID Antenna for Handheld Reader
860MHz~960MHz 3dBic  UHF Small RFID Antenna for Handheld Reader
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-07
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: Small RFID Antenna,Handheld RFID Antenna Size: 61 Mm×61 Mm×16.3 Mm
Weight: 30g Material: FR4, Stainless Steel
Color: Green Production Class: IP54
Operating Temperature: -40℃~+ 85℃ Email:

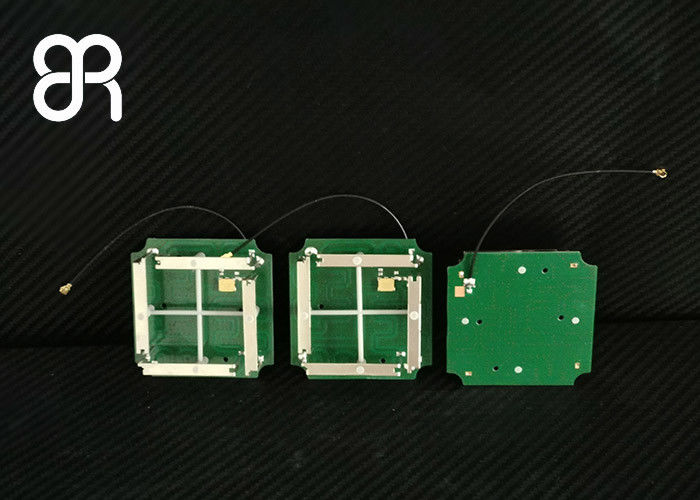

BRA-07 860MHz~960MHz 3dBic UHF Small RFID Antenna for Handheld Reader

Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.

Product  Features

(1)Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.

(2)Mechanical Properties: small size and suitable for various severe environments.

(3)BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.


860MHz~960MHz 3dBic  UHF Small RFID Antenna for Handheld Reader 0

Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 3 dBic
Polarization Circular Polarization
Axial ratio <3 dB
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

CMMX(IPEX optional)


Provide custom design services

Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.

RFID team

1) 12 years focused on RFID antenna RFID engineers

2) Complete RFID and test equipment

3) Darkroom, network analyzer, label tester, comprehensive tester, etc.

4) Rich application and project experience

5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
