Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-02CR |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 1-3work days |
Payment Terms: | T/T, PayPal |

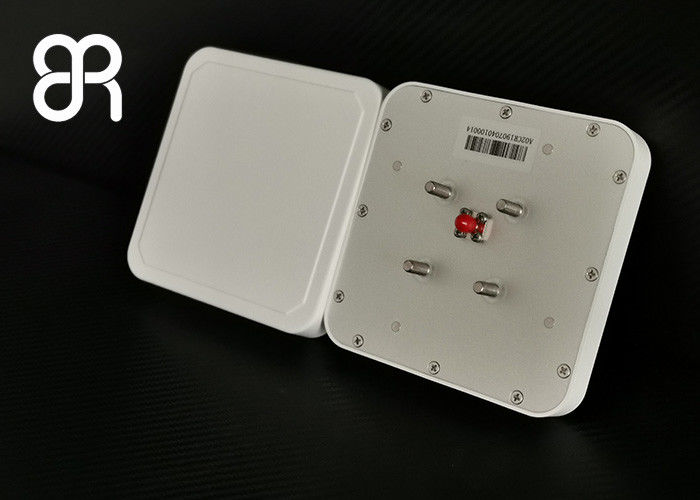

Name: | Small RFID Antenna,rfid External Antenna | Size: | 128mm×128mm×20mm |
---|---|---|---|
Weight: | 0.3kg (bracket Excluded) | Material: | Engineering Plastics ASA, Aluminum |
Color: | Milk-white | Production Class: | IP67 |
Operating Temperature: | -40℃~+ 85℃ | Email: | Cliff.lee@brrfid.com |
Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
3)BRA-02CR Antenna is of convenient application in automated production line management, warehousing, logistics, retail and other UHF RFID application fields.
Frequency Range | 902MHz~928MHz(865MHz~868MHz) |
VSWR | ≤1.3:1 |
Gain | > 6 dBic |
H side HPBW | 105° |
E side HPBW | 105° |
Polarization | Circular Polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type |
SMA-50KFD Female |
The BRA-02CR antenna is a circularly polarized directional antenna. When using it, care should be taken to adjust the tilt angle of the antenna to obtain the best reading performance.
The BRA-02CR antenna can be used outdoors, but it is not suitable for use in an acid/alkaline environment.
1) The management team of Japanese-funded enterprises guarantees order
2) Excellent performance of imported operations and test equipment to ensure accuracy
3) Efficient job management process to ensure efficiency
4) Strict quality control mechanism to ensure quality
5) Large production capacity of 13,000 square meters and 500 production staff guarantee production capacity
Contact Person: Mr. Cliff.lee
Fax: 86-755-26651609
