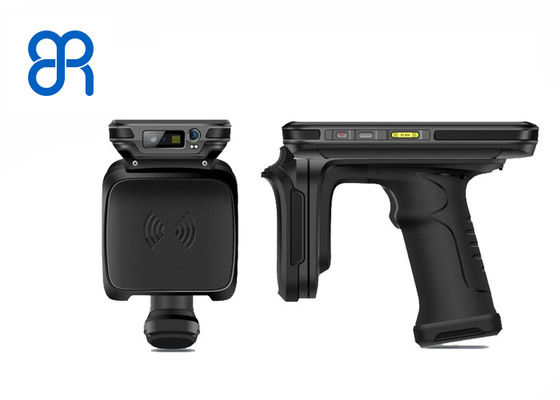

Long Range UHF Handheld RFID reader with R2000 4dBic circular polarized antenna

Place of Origin China
Brand Name broadradio
Model Number BRD-C07
Product Details
Frequency:
865-868MHz / 920-925MHz / 902-928MHz
Product Name:
UHF RFID Reader,Handheld RFID Reader
Interface:
USB 2.0 Type-C, OTG
Protocol:
ISO/IEC 19794-6,GB/T 20979-2007
Reading Rate:
>200 Tags/s (circular Polarization)
Operating System:
Android 6.0
Size:
164.2mm X 80.0mm X 24.3mm
Email:
Cliff.lee@broadradio.com.cn
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
2 weeks
Payment Terms
T/T, PayPal
Product Description

Long Range UHF Handheld RFID reader with R2000 4dBic circular polarized antenna


This device is an Android rugged mobile computer. It features powerful processor, 8000mAh battery and superb UHF RFID
capability. It can be equipped with R2000 linearly or circularly polarized antenna. That it can read tags in bulk from long
distance enables it to be deployed in asset management, retail, warehousing, fleet management and etc.

Long Range UHF Handheld RFID reader with R2000 4dBic circular polarized antenna 0
Specification
Performance

Quad-core
CPU Cortex-A53 Quad-core 1.45GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 128 GB Micro SD card
Operating System Android 6.0
Octa-core
CPU Cortex-A53 Octa-core 2.5GHz
RAM+ROM 3GB+32GB
Expansion Supports up to 128 GB Micro SD card
Operating System Android 8.1


Communication

Quad-core

WLAN

IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal
antenna

WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN(Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna
Octa-core
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal
antenna
WWAN (China) 2G: 900/1800MHz
3G: WCDMA: B1,B8
       CDMA2000 EVDO: BC0
       TD-SCDMA: B34,B39
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B1,B3,B5,B7,B8,B20,B40
WWAN(America) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B2,B4,B7,B12,B17,B25,B66
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna


Physical Characteristics

Dimensions 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight 654g / 23.07oz
Display 5.2'' IPS FHD 1920x1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and
wet hands supported
Power Li-ion, rechargeable, 8000mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user
environment)
Charging time: 3-4 hours (with standard adaptor
and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1
multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor


User Environment

Operating Temp. -4℉ to 122℉ / -20℃ to 50℃
Storage Temp. -40℉to 158℉/ -40℃ to 70℃
Humidity 5%RH - 95%RH non condensing
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the
concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Sealing Host IP65 per IEC sealing specifications
ESD ±15KV air discharge, ±6KV conductive discharge


Developing Environment

SDK Software Development Kit
Language Java
Tool Eclipse  Android Studio


Data Collection

Camera 13MP Autofocus with flash
RFID (Optional) UHF
Engine Based on Impinj Indy R2000
Frequency 865-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Linear polarization(1.8dBi); circular polarization (4dBi)
Power 1W (30dBm, +5dBm to +30dBm adjustable)
R/W range >25m (circular polarization, indoors); >10m
(circular polarization, open outdoors); >21m (linear
polarization, indoors); >7m (linear polarization,
open outdoors)
Reading rate >200 tags/s (circular polarization)
* Ranges and rates depend on tags and environment
Barcode Scanning (Optional)
1D Linear Scanner
(Quad-core)
Zebra SE965 / Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of
5, Codabar, MSI, RSS, etc.
2D Imager Scanner
(Quad-core)
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell:
N6603
2D Imager Scanner
(Octa-core)
Zebra SE4750/ SE4750MR
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,
Datamatrix, QR code, Micro QR code, Aztec,
MaxiCode; Postal Codes: US PostNet, US Planet,
UK Postal, Australian Postal, Japan Postal, Dutch
Postal (KIX), etc.
Iris (optional)
Rate <150ms
Range 20-40cm
FAR 1/10000000
Protocol ISO/IEC 19794-6,GB/T 20979-2007
NFC (optional)
Frequency 13.56MHz
Accessories
Standard AC Adaptor, USB Cable, etc.
Optional Cradle, Holster , etc.



As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.
