Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution

|
| Place of Origin: | China |
| Brand Name: | broadradio |
| Model Number: | BRD-C07 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T, PayPal |
| Frequency: | 865-868MHz / 920-925MHz / 902-928MHz | Product Name: | UHF RFID Reader，Rfid Handheld Terminal，Handheld RFID Reader |
|---|---|---|---|
| Interface: | USB 2.0 Type-C, OTG | Protocol: | ISO/IEC 19794-6，GB/T 20979-2007 |
| Reading Rate: | ＞200 Tags/s (circular Polarization) | Size: | 164.2 X 80.0 X 24.3mm |
| Net Weight: | 654g | Email: | Lyh@brrfid.com |

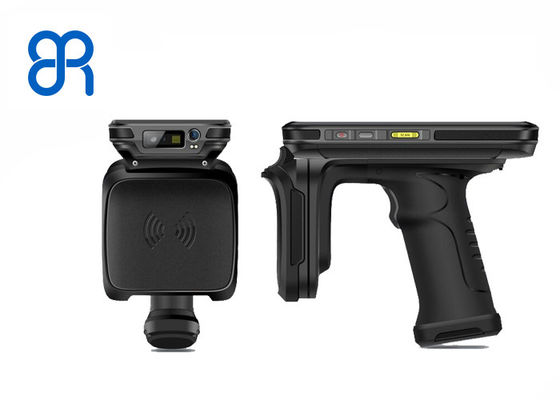

UHF 865-928MHz RFID handheld tag reader for retail/warehouse/fleet management
1) 13,000 square meters RFID production base
2) One-on-one service for more than 20 senior RFID engineers
3) 500 production employees guarantee production capacity
4) Serving more than 2,000 integrators and cooperating with Fortune 500 companies
5) Won the “National High-tech Enterprise” and “Shenzhen High-tech Enterprise” Double High Enterprise
This device is an Android rugged mobile computer. It features powerful processor, 8000mAh battery and superb UHF RFID
capability. It can be equipped with R2000 linearly or circularly polarized antenna. That it can read tags in bulk from long
distance enables it to be deployed in asset management, retail, warehousing, fleet management and etc.
| Quad-core | |
| CPU | Cortex-A53 Quad-core 1.45GHz |
| RAM+ROM | 2GB+16GB |
| Expansion | Supports up to 128 GB Micro SD card |
| Operating System | Android 6.0 |
| Octa-core | |
| CPU | Cortex-A53 Octa-core 2.5GHz |
| RAM+ROM | 3GB+32GB |
| Expansion | Supports up to 128 GB Micro SD card |
| Operating System | Android 8.1 |
|
Quad-core |
|
|
WLAN |
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal |
| WWAN (China) | 2G: 900/1800MHz |
| 3G: 900/1900/2000/2100MHz | |
| 4G: B1, B3, B5, B38, B39, B40, B41 | |
| WWAN(Europe) | 2G: 850/900/1800/1900MHz |
| 3G: 850/900/1900/2100MHz | |
| 4G: B1, B3, B5, B7, B8, B20, B40 | |
| WWAN(America) | 2G: 850/900/1800/1900MHz |
| 3G: 850/900/1700/1900MHz | |
| 4G: B2, B4, B7, B12, B17 | |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
| Octa-core | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| WWAN (China) | 2G: 900/1800MHz |
| 3G: WCDMA: B1,B8 | |
| CDMA2000 EVDO: BC0 | |
| TD-SCDMA: B34,B39 | |
| 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 | |
| WWAN (Europe) | 2G: 850/900/1800/1900MHz |
| 3G: B1,B2,B4,B5,B8 | |
| 4G: B1,B3,B5,B7,B8,B20,B40 | |
| WWAN(America) | 2G: 850/900/1800/1900MHz |
| 3G: B1,B2,B4,B5,B8 | |
| 4G: B2,B4,B7,B12,B17,B25,B66 | |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth v2.1+EDR,3.0+HS,v4.1+HS |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Dimensions | 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in |
| Weight | 654g / 23.07oz |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Li-ion, rechargeable, 8000mAh |
| Standby: over 500 hours | |
| Continuous use: over 12 hours (depending on user environment) |
|
| Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, light sensor, proximity sensor |
User Environment
| Operating Temp. | -4℉ to 122℉ / -20℃ to 50℃ |
| Storage Temp. | -40℉to 158℉/ -40℃ to 70℃ |
| Humidity | 5%RH - 95%RH non condensing |
| Drop Specification | Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.6ft falls at room temperature |
| Sealing | Host IP65 per IEC sealing specifications |
| ESD | ±15KV air discharge, ±6KV conductive discharge |
Developing Environment
| SDK | Software Development Kit |
| Language | Java |
| Tool Eclipse | Android Studio |
Data Collection
| Camera | 13MP Autofocus with flash |
| RFID (Optional) UHF | |
| Engine | Based on Impinj Indy R2000 |
| Frequency | 865-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Linear polarization(1.8dBi); circular polarization (4dBi) |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable) |
| R/W range | ＞25m (circular polarization, indoors); ＞10m (circular polarization, open outdoors); ＞21m (linear polarization, indoors); ＞7m (linear polarization, open outdoors) |
| Reading rate | ＞200 tags/s (circular polarization) |
| * Ranges and rates depend on tags and environment | |
| Barcode Scanning (Optional) | |
| 1D Linear Scanner (Quad-core) |
Zebra SE965 / Honeywell N4313 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Imager Scanner (Quad-core) |
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| 2D Imager Scanner (Octa-core) |
Zebra SE4750/ SE4750MR |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Iris (optional) | |
| Rate | <150ms |
| Range | 20-40cm |
| FAR | 1/10000000 |
| Protocol | ISO/IEC 19794-6,GB/T 20979-2007 |
| NFC (optional) | |
| Frequency | 13.56MHz |
| Accessories | |
| Standard | AC Adaptor, USB Cable, etc. |
| Optional | Cradle, Holster , etc. |
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
