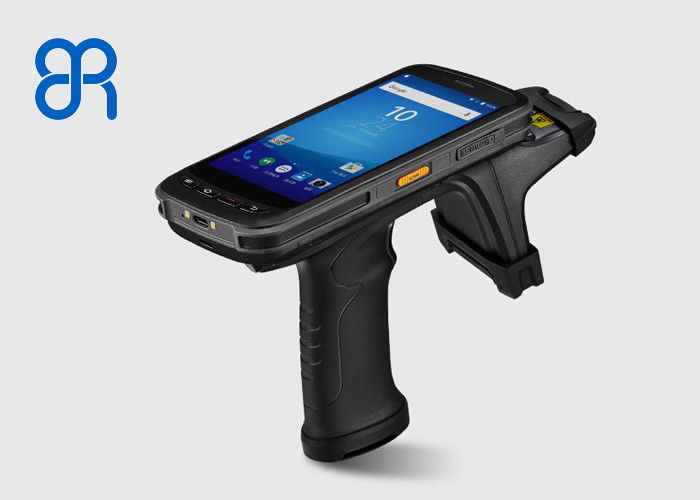

BRD-C07 4G/WiFi/Bluetooth connection UHF Mobile RFID Reader,data collection RFID handset
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
BRD-C07 intelligent handheld terminal with industry-leading UHF reading and writing performance, its application range is particularly wide, and it is efficient, convenient, flexible, and meets the needs of high-intensity label reading work. It can be widely used in clothing wholesale, Warehouse management, retail inventory, jewelry management, asset management and other industry sectors not only significantly improve work efficiency, but also help strengthen information management, optimize resource allocation, save costs, and enhance overall corporate efficiency.
Performance
| Quad-core |
| CPU |
Cortex-A53 Quad-core 1.45GHz |
| RAM+ROM |
2GB+16GB |
| Expansion |
Supports up to 128 GB Micro SD card |
| Operating System |
Android 6.0 |
| Octa-core |
| CPU |
Cortex-A53 Octa-core 2.5GHz |
| RAM+ROM |
3GB+32GB |
| Expansion |
Supports up to 128 GB Micro SD card |
| Operating System |
Android 8.1
|
Data Collection
| Camera |
13MP Autofocus with flash |
| RFID (Optional) UHF |
| Engine |
Based on Impinj Indy R2000 |
| Frequency |
865-868MHz / 920-925MHz / 902-928MHz |
| Protocol |
EPC C1 GEN2 / ISO18000-6C |
| Antenna |
Linear polarization(1.8dBi); circular polarization (4dBi) |
| Power |
1W (30dBm, +5dBm to +30dBm adjustable) |
| R/W range |
＞25m (circular polarization, indoors); ＞10m
(circular polarization, open outdoors); ＞21m (linear
polarization, indoors); ＞7m (linear polarization,
open outdoors) |
| Reading rate |
＞200 tags/s (circular polarization) |
| * Ranges and rates depend on tags and environment |
| Barcode Scanning (Optional) |
1D Linear Scanner
(Quad-core) |
Zebra SE965 / Honeywell N4313 |
| 1D Symbologies |
UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of
5, Codabar, MSI, RSS, etc. |
2D Imager Scanner
(Quad-core) |
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell:
N6603 |
2D Imager Scanner
(Octa-core) |
Zebra SE4750/ SE4750MR |
| 2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39,
Datamatrix, QR code, Micro QR code, Aztec,
MaxiCode; Postal Codes: US PostNet, US Planet,
UK Postal, Australian Postal, Japan Postal, Dutch
Postal (KIX), etc. |
| Iris (optional) |
| Rate |
<150ms |
| Range |
20-40cm |
| FAR |
1/10000000 |
| Protocol |
ISO/IEC 19794-6,GB/T 20979-2007 |
| NFC (optional) |
| Frequency |
13.56MHz |
| Accessories |
| Standard |
AC Adaptor, USB Cable, etc. |
| Optional |
Cradle, Holster , etc.
|
Android, quad-core processor, large storage space
• With Android 6.0 system, it is safer and easier to use.
• Quad-core 1.3GHz speed processor for easy multi-tasking and smooth operation
• 2GB RAM, 16GB ROM, support for 32GB TF card expansion
Bar code scanning, high-definition camera and other data acquisition functions are optional
• High-performance bar code scanning engine, powerful scanning code, able to accurately and quickly identify all kinds of one-dimensional QR codes, fully meet the needs of high-intensity and high-precision scanning
• 13 megapixel color camera with auto focus and flash for high quality image capture
• Accurate iris recognition function, accuracy FAR≤1/10000000
Professional RFID UHF read and write function
• Support EPC C1 GEN2 / ISO18000-6C agreement
• 10 meters or more super far reading distance
• Customized reader modules and software programs can be customized according to any industry and chip specifications
