| Place of Origin | Shenzhen, China |
| Brand Name | Broadradio |
| Model Number | BRD-C07 |

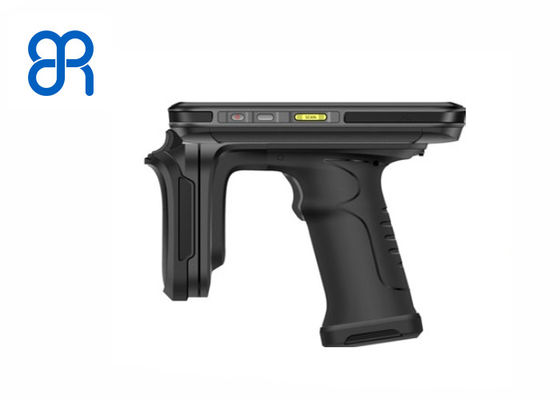

BRD-C07 UHF smart handheld terminal UHF RFID Reader ,Reading rate＞200 tags/s Language Java
1. BRD-C07 is a high performance UHF smart handheld terminal.
2, C07 features complete, reliable and durable, combined with powerful UHF UHF read and write function
3. Compared with the traditional reading method, it has better sensitivity and helps to achieve more accurate and faster data acquisition.
4, using Android 6.0 smart operating system, equipped with 1.3GHz quad-core speed processor, has a long battery life, industrial grade IP65 high protection level, first-class configuration, sturdy and durable.
5, widely used in asset management, clothing inventory, vehicle management, high-speed charging, warehousing management, financial management and many other fields
6. Help users realize information management and improve work efficiency.
| Dimensions | 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in |
| Weight | 654g / 23.07oz |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Li-ion, rechargeable, 8000mAh |
| Standby: over 500 hours | |
| Continuous use: over 12 hours (depending on user environment) |
|
| Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, light sensor, proximity sensor |
User Environment
| Operating Temp. | -4℉ to 122℉ / -20℃ to 50℃ |
| Storage Temp. | -40℉to 158℉/ -40℃ to 70℃ |
| Humidity | 5%RH - 95%RH non condensing |
| Drop Specification | Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.6ft falls at room temperature |
| Sealing | Host IP65 per IEC sealing specifications |
| ESD | ±15KV air discharge, ±6KV conductive discharge |
Developing Environment
| SDK | Software Development Kit |
| Language | Java |
| Tool Eclipse | Android Studio |
The C07 UHF module supports circularly polarized 4dBi antennas. There is not much requirement for the direction of the label. A wide scanning range and scanning distance can be realized, which makes the scanning application in actual work more flexible, and the staff does not need to align the labels at all times. You can read it at a distance or near, and it is more convenient and efficient.
4G, WiFi, Bluetooth and other wireless connection options
• Support 4G wireless communication, providing faster data transfer rate
• Support WiFi wireless network transmission, convenient and fast, data transmission is more stable
• Bluetooth support for connecting various Bluetooth devices that comply with the protocol
