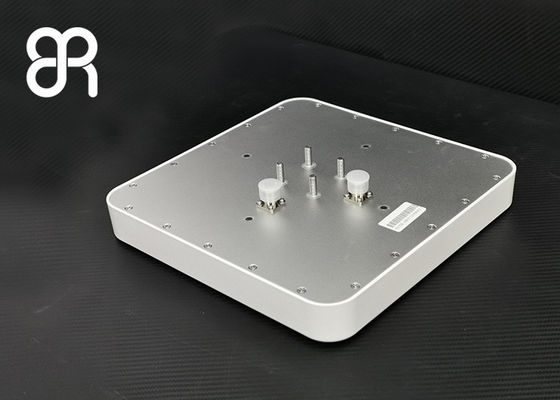

9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR

9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR

9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR
video
9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR
Product Details:
Place of Origin: China
Brand Name: broadradio
Model Number: BRA-01DL
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 5-10 work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: Linear RFID Antenna, High Gain Antenna Size: 258*258*36mm
Gain: 9dBic Polarization: Circular Polarization
Weight: 0.91kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Production Class: IP67
High Light:

linear polarization antenna

,

long range rfid reader antenna

BRA-01DL 9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR



As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.

Product Function and Features

Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

It has the dual advantages of the far reading distance in the linear polarization antenna and the non-directional feature in the circular polarization antenna.

Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

Product Applications

BRA-01DL Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR 0

Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain > 9 dBic
H side HPBW 70°
E side HPBW 70°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

N Female (two inputs)



Mechanical Specifications

Size 258mm×258mm×36mm
Weight 0.91kg (bracket excluded)
Material Engineering plastics ASA, aluminum
Color Milk-white
Production Class IP67
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



Mounting

BRA-01DL Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.





9dBic UHF Linear RFID Antenna for Far field application with high gain and low VSWR 1

FAQ and Cautions

BRA-01DL Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-01DL Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
