|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Standard Export Carton, Foam and Protective Film|
|Delivery Time:||3-5work days|
|Payment Terms:||L/C, D/P, T/T, Western Union|
|Weight:||0.91kg (bracket Excluded)||Name:||Linear RFID Antenna|
linear polarization antenna,
rfid antenna uhf
1. The antenna is a general-purpose antenna for UHF RFID applications with high gain and low VSWR.
2. The dual advantage of having a far-reading distance in a linearly polarized antenna and a non-directional feature in a circularly polarized antenna.
3. The antenna has superior mechanical properties, beautiful appearance and small volume.
4, with double waterproof design, waterproof level up to IP67, waterproof ring and silicone, shell reinforcement design, suitable for a variety of harsh environments.
5. BRA-01DL antennas are used in access control, warehousing, logistics, retail and other UHF RFID applications.
|Gain||> 9 dBic|
|H side HPBW||70°|
|E side HPBW||70°|
N Female (two inputs)
|Weight||0.91kg (bracket excluded)|
|Material||Engineering plastics ASA, aluminum|
|Operating Temperature||-40℃~+ 85℃|
|Storage Temperature||-40℃~+ 85℃|

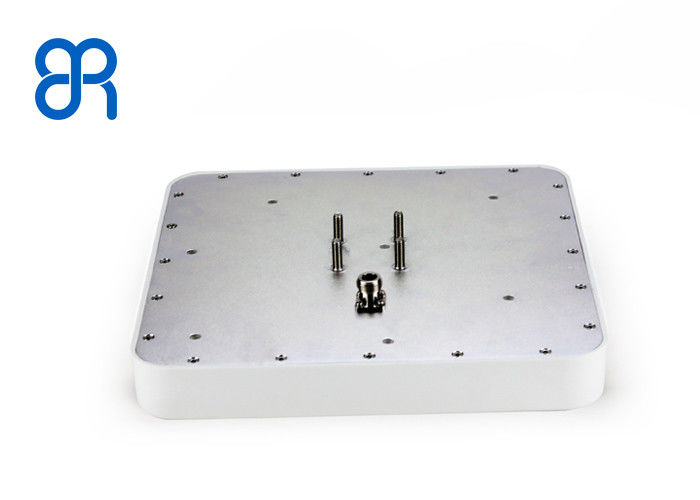

Figure 1. Antenna Photo
BRA-01DL Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is an optional accessory and customers can choose it according to actual need.
Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
