Electrical performance: Applicable to near-field antennas for UHF band RFID applications, with small size, high gain, low standing wave and so on.
The BRA-17 antenna can be easily applied to RFID applications with UHF bands with close reading distance and limited installation size.
Frequency Range | 920MHz~925MHz |
VSWR | ≤1.3:1 |
Gain |
0.1 dBic |
Polarization |
Linear Polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type |
SMA-K (MMCX or ipex optional) |
Size | 65mm×30mm×4mm |
Weight | 16g |
Material |
F4BM |
Color |
green |
Operating Temperature | 0℃~+ 50℃ |
Storage Temperature | -30℃~+ 60℃ |

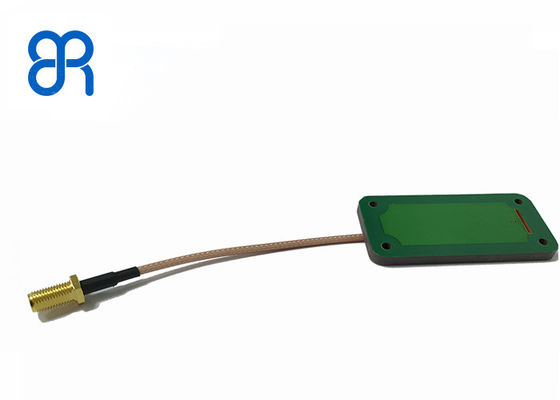

Figure 1. Antenna Photo
