Product Details:
Payment & Shipping Terms:
|
| Name: | Handheld RFID Reader，UHF RFID Reader | Operating System: | Android 6.0 |
|---|---|---|---|
| Reading Rate: | ＞200 Tags/s (circular Polarization) | Display: | 5.2'' IPS FHD 1920x1080 |
| Interfaces: | USB 2.0 Type-C, OTG | SDK: | Software Development Kit |
| Language: | Java | Antenna: | Linear Polarization(1.8dBi); Circular Polarization (4dBi) |
| High Light: | rfid desktop reader,handheld rfid reader |
||

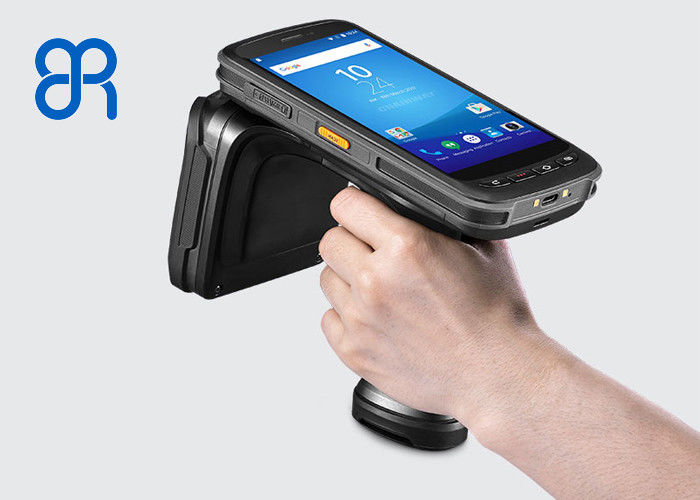

BRD-C07 Intelligent handheld UHF RFID Reader circular polarization Reading rate＞200 tags/s
BRD-C07 intelligent handheld terminal with industry-leading UHF reading and writing performance, its application range is particularly wide, and it is efficient, convenient, flexible, and meets the needs of high-intensity label reading work. It can be widely used in clothing wholesale, Warehouse management, retail inventory, jewelry management, asset management and other industry sectors not only significantly improve work efficiency, but also help strengthen information management, optimize resource allocation, save costs, and enhance overall corporate efficiency.
Physical Characteristics
| Dimensions | 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in |
| Weight | 654g / 23.07oz |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Li-ion, rechargeable, 8000mAh |
| Standby: over 500 hours | |
| Continuous use: over 12 hours (depending on user environment) |
|
| Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, light sensor, proximity sensor |
User Environment
| Operating Temp. | -4℉ to 122℉ / -20℃ to 50℃ |
| Storage Temp. | -40℉to 158℉/ -40℃ to 70℃ |
| Humidity | 5%RH - 95%RH non condensing |
| Drop Specification | Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.6ft falls at room temperature |
| Sealing | Host IP65 per IEC sealing specifications |
| ESD | ±15KV air discharge, ±6KV conductive discharge |
Data Collection
| Camera | 13MP Autofocus with flash |
| RFID (Optional) UHF | |
| Engine | Based on Impinj Indy R2000 |
| Frequency | 865-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Linear polarization(1.8dBi); circular polarization (4dBi) |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable) |
| R/W range | ＞25m (circular polarization, indoors); ＞10m (circular polarization, open outdoors); ＞21m (linear polarization, indoors); ＞7m (linear polarization, open outdoors) |
| Reading rate | ＞200 tags/s (circular polarization) |
| * Ranges and rates depend on tags and environment | |
| Barcode Scanning (Optional) | |
| 1D Linear Scanner (Quad-core) |
Zebra SE965 / Honeywell N4313 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Imager Scanner (Quad-core) |
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| 2D Imager Scanner (Octa-core) |
Zebra SE4750/ SE4750MR |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Iris (optional) | |
| Rate | <150ms |
| Range | 20-40cm |
| FAR | 1/10000000 |
| Protocol | ISO/IEC 19794-6,GB/T 20979-2007 |
| NFC (optional) | |
| Frequency | 13.56MHz |
| Accessories | |
| Standard | AC Adaptor, USB Cable, etc. |
| Optional | Cradle, Holster , etc. |
core advantages
1) The core technology R&D team comes from top universities and antenna companies in China.
2) R&D team has rich experience in UHF RFID antenna and label development
3) Advanced and efficient R&D platform, which can quickly respond to customized requirements and has a short development cycle
4) Successfully developed a variety of patented products including antennas, tags, access control and other integrated devices
