Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-31 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3-5works |
Payment Terms: | T/T,PayPal |
Name: | Narrow Beam Antenna,UHF RFID Antenna | Size: | 200mm×200mm×32mm |
---|---|---|---|
Weight: | 1.3kg (bracket Excluded) | Material: | Aluminum Alloy, Engineering Plastics ASA |
Color: | Milk-white | Production Class: | IP65 |
Operating Temperature: | -40℃~+ 85℃ | Email: | Cliff.lee@broadradio.com.cn |
High Light: | UHF RFID Narrow Beam Antenna,8.5dBic Narrow Beam Antenna,Circular Polarization Handheld RFID Antenna |

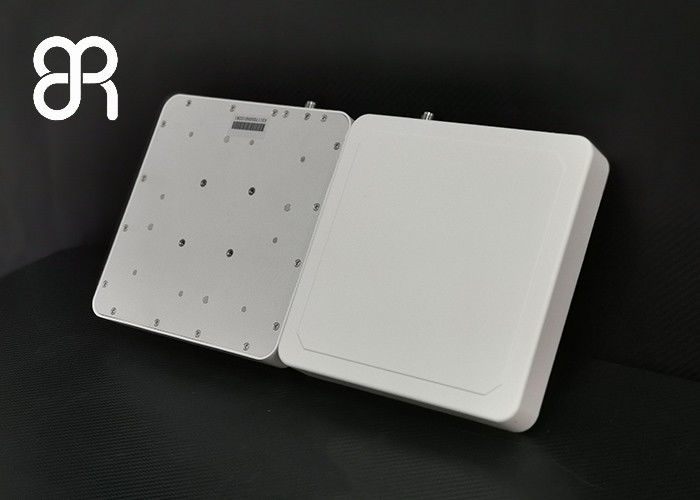

BRA-31 VSWR≤1.3:1 UHF RFID Narrow Beam Antenna with Circular Polarization
1) A wide range of products to meet various distance requirements;
2) Independent research and development of products, free technical and after-sales service;
3) Source factory direct sales, the price is 15%-20% lower than other companies;
4) One-stop service for product customization design, testing and production
(1)Impact resistance, anti-vibration, small size, high gain, low VSWR and etc.
(2)Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for UHF RFID various severe environments.
(3)BRA-31 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Frequency Range | 860MHz~960MHz |
VSWR | ≤1.3:1 |
Gain | >8.5dBic |
Beamwidth | 78°x78° |
Polarization | Circular Polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | RP-TNC Female |
Product Applications | access control, warehousing, logistics, retail and other UHF RFID application fields. |
1) Foxconn for Apple Project Asset Management
2) Oil Drilling Materials Asset Warehouse
3) Some unmanned self-service store
4) A library intelligent optimization solution
5) A brand apparel retail storage management plan
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
