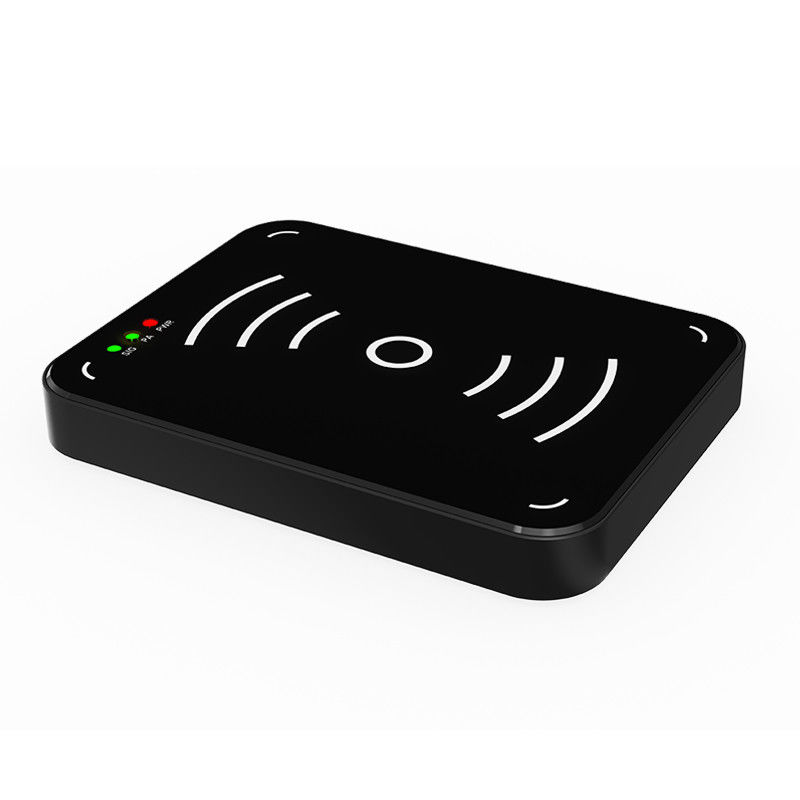

Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB
  • Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB

Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB

Place of Origin Shenzhen, China
Brand Name Broadradio
Certification ISO 18000-6C/6B,EPC C1G2 GB/T 29768-2013
Model Number BRD-DC06
Product Details
Frequency Range:
840~845MHz/ 920~925MHz
Name:
UHF RFID Reader,RFID Desktop Reader
Equipment Power:
USB(DC 5V)
Housing Material:
Alloy
Protocol:
ISO 18000-6C
Size:
137mm*105mm*16mm
Communication Interface:
TPYE-C
IP Class:
IP53
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
5-8 work days
Payment Terms
T/T,PayPal
Product Description

Product Description

BRD-DC06 card reader is a professional reader specially designed and developed by our company for label information input. It has excellent protection performance and read and write performance. It can realize automatic group write and single write, and quickly read and write labels. The appearance of the product is simple and generous, small and beautiful, light weight and easy to carry. The software provided with the reader can quickly import and export Excel tables, automatically input data intelligently, realize fast binding and association of labels and data information, reduce tedious manual input, and improve work efficiency. It adopts USB communication design, supports virtual keyboard input, and data communication, which is convenient for customers to realize complex applications in various modes. The card issuer adopts a simple and atmospheric design style, classic black high-density resin material, with black aluminum alloy edge shell, highlighting the industrial beauty.

Product features

Classic industrial shape
Using simple and atmospheric design style, classic black high-density resin material, with black aluminum alloy side shell, highlighting the industrial beauty
 Easy to operate
USB communication design, convenient for customers to achieve a variety of different formats of virtual keyboard output, in line with user habits
 Read and write reliable
The antenna is perfectly integrated with the reader, and the near-field antenna is used to accurately read and write labels with small misreading range
 Strong label processing capability
Provide automatic card writing, card reading DEMO software, convenient for customers to issue and write cards, can batch write cards quickly, support fast label filtering
 Easy to develop applications
Provide SDK development kit, support a variety of development languages, provide C#, Android, Java and other development routines, can be upgraded iteratively
 Is safer to use
It can be directly encrypted, anti-copy, comprehensively ensure the security of data, and prevent others from malicious forgery and data information disclosure

Dimension drawing

Reliable UHF RFID Smart USB Desktop Reader/Writer Small Size 865-868Mhz & 902-928Mhz Desktop USB 0





Physical parameter
Size
137mm×105mm×16mm
Materials
alloy
Class of protection
IP53
Main function
Agreement

ISO 18000-6C/6B, EPC C1G2

GB/T 29768-2013(Optional)
GJB 7377. 1-2011/7377. 1-2018A
Various temperature and humidity label protocols
Communication interface
TYPE-C
Frequency

GB,920MHz~925MHz/840MHz~845MHz

FCC,902MHz~928MHz
ETSI,865MHz~868MHz
RF Output Power (port)
0-27dBm±1dB (21dBm is recommended)
Output power regulation
1 dB step
Band stability
≤±10ppm
Read distance
0~60CM
Power supply
USB(DC 5V)
Working environment
Operating temperature
-20 - +60°C
Storage temperature
-40 - +85°C
Humidness
10%-95% RH no condensation
