860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material

860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material

860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material
video
860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-31
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5works
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Frequency Range: 860MHz~960MHz VSWR: ≤1.3:1
Gain: 8.5 DBic Polarization: Circular Polarization
Name: Narrow Beam Antenna,UHF RFID Antenna Weight: 0.6kg (bracket Excluded)
Color: Milk-white Email: Cliff.lee@broadradio.com.cn
High Light:

circular polarized antenna

,

circular polarised antenna

860~960MHz UHF RFID Narrow beam antenna for Portal/warehouse/logistics/retail

Product Function and Features

Impact resistance, anti-vibration, small size, high gain, low VSWR and etc.

Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for UHF RFID various severe environments.



Product Applications

BRA-31 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.



Performance Specifications

Frequency Range

860MHz~960MHz

VSWR ≤1.3:1

Gain

>8.5 dBic

Beamwidth

78°x78°

Polarization

Circular Polarization

Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

RP-TNC Female



Mechanical Specifications

Size 200mm×200mm×32mm
Weight 1.3kg (bracket excluded)
Material

Aluminum alloy, engineering plastics ASA

Color

Milk-white

Production Class IP65
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃



860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material 0

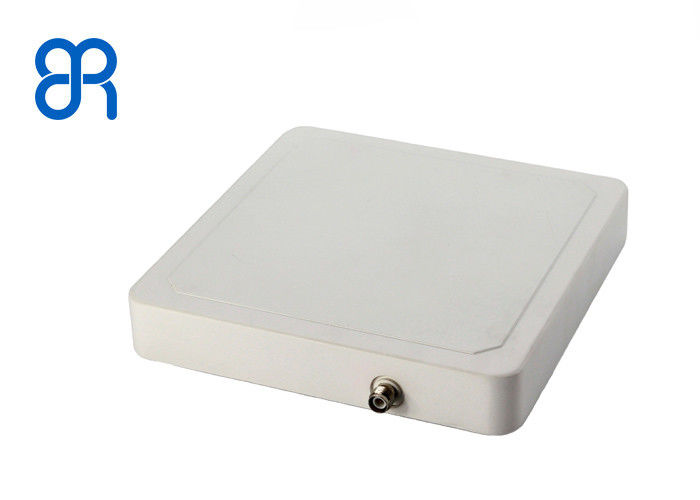

Figure 1. Antenna Photo



Mounting

BRA-31 Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.



860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material 1



Antenna pattern

860-960MHz UHF RFID Circular Polarized Antenna Gain 8.5dBic With Aluminum Alloy Material 2



FAQ and Cautions

BRA-31 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-31 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
