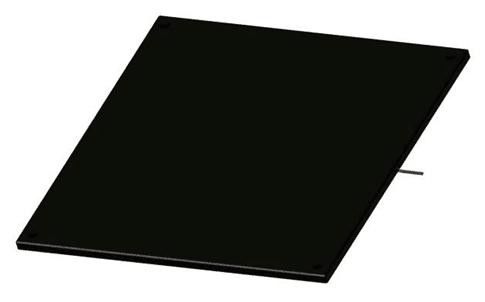

6dBic Far Field Narrow Beam Antenna / Circular Polarised Antenna With Broad Axial Ratio

6dBic Far Field Narrow Beam Antenna / Circular Polarised Antenna With Broad Axial Ratio

  • 6dBic Far Field Narrow Beam Antenna  / Circular Polarised Antenna With Broad Axial Ratio
  • 6dBic Far Field Narrow Beam Antenna  / Circular Polarised Antenna With Broad Axial Ratio
6dBic Far Field Narrow Beam Antenna  / Circular Polarised Antenna With Broad Axial Ratio
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-10
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard Export Carton and Protective Film
Delivery Time: 5-10work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Frequency: 902MHz~928MHz Size: 301 Mm×301mm×8.5 Mm
Gain: 6dBic Connector Type: SMA-K
Weight: 0.73g Material: Plastics, Aluminum, FR4
Color: Black Email: Cliff.lee@broadradio.com.cn
High Light:

circular polarized antenna

,

circular polarised antenna

6dBic Narrow Beam Antenna is UHF RFID far-field antenna with broad axial ratio

Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.

Product Function and Features

Electrical Properties: It is UHF RFID far-field antenna with broad axial ratio, low VSWR and etc.

Mechanical Properties: pleasing appearance, ultra-thin design, sophisticated techniques, easy to install, it fits all the domestic and foreign model UHF readers and brings the best performance of the reader.



Product Applications

BRA-10 Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.

Performance Specifications

Frequency Range

902MHz~928MHz

VSWR ≤1.3:1
Gain 6 dBic

H side HPBW

85°

E side HPBW

85°

Polarization

Circular Polarization

Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

SMA-K



Mechanical Specifications

Size

301 mm×301mm×8.5 mm

Weight 0.73g
Material

Plastics, aluminum, FR4

Color Black
Production Class IP54
Operating Temperature -20℃~+ 55℃
Storage Temperature -20℃~+ 55℃



Dimensions



6dBic Far Field Narrow Beam Antenna  / Circular Polarised Antenna With Broad Axial Ratio 0

Antenna VSWR testing chart

6dBic Far Field Narrow Beam Antenna  / Circular Polarised Antenna With Broad Axial Ratio 1



FAQ and Cautions

BRA-10 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-10 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.



Product advantages

1) A wide range of products to meet various distance requirements;

2) Independent research and development of products, free technical and after-sales service;

3) Source factory direct sales, the price is 15%-20% lower than other companies;

4) One-stop service for product customization design, testing and production
