Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China |
Brand Name: | broadradio |
Model Number: | BRD-C07 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 2 weeks |
Payment Terms: | T/T,PayPal |
Name: | Handheld RFID Reader,RFID Handheld Terminal | Operating System: | Android 6.0 |
---|---|---|---|
Interface: | USB 2.0 Type-C, OTG | Protocol: | EPC C1 GEN2 / ISO18000-6C |
Dimensions: | 164.2 X 80.0 X 24.3mm / 6.46 X 3.15 X 0.96in | Power: | 1W (30dBm, +5dBm To +30dBm Adjustable) |
Sealing: | Host IP65 Per IEC Sealing Specifications | Email: | Cliff.lee@broadradio.com.cn |
High Light: | rfid desktop reader,handheld rfid reader |

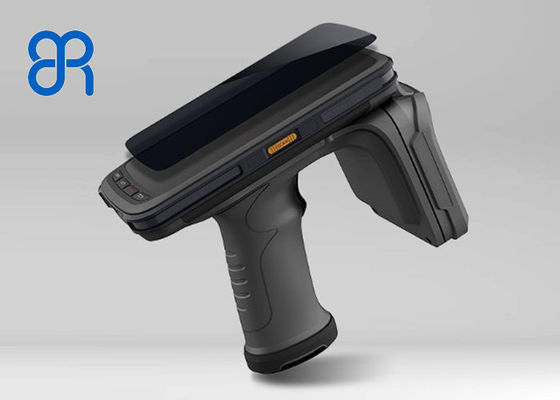

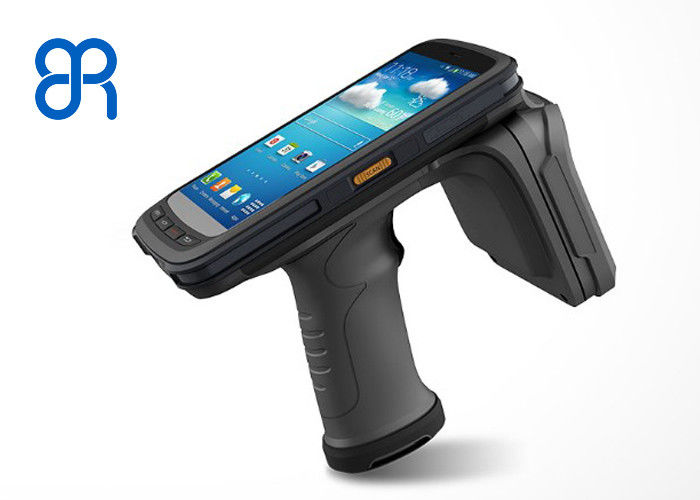

BRD-C07 RFID/Barcode Scanning/NFC Function UHF Handheld RFID Reader 8000mAh battery
The C07 UHF module supports circularly polarized 4dBi antennas. There is not much requirement for the direction of the label. A wide scanning range and scanning distance can be realized, which makes the scanning application in actual work more flexible, and the staff does not need to align the labels at all times. You can read it at a distance or near, and it is more convenient and efficient.
Quad-core | |
CPU | Cortex-A53 Quad-core 1.45GHz |
RAM+ROM | 2GB+16GB |
Expansion | Supports up to 128 GB Micro SD card |
Operating System | Android 6.0 |
Octa-core | |
CPU | Cortex-A53 Octa-core 2.5GHz |
RAM+ROM | 3GB+32GB |
Expansion | Supports up to 128 GB Micro SD card |
Operating System | Android 8.1 |
Quad-core | |
WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
WWAN (China) | 2G: 900/1800MHz |
3G: 900/1900/2000/2100MHz | |
4G: B1, B3, B5, B38, B39, B40, B41 | |
WWAN(Europe) | 2G: 850/900/1800/1900MHz |
3G: 850/900/1900/2100MHz | |
4G: B1, B3, B5, B7, B8, B20, B40 | |
WWAN(America) | 2G: 850/900/1800/1900MHz |
3G: 850/900/1700/1900MHz | |
4G: B2, B4, B7, B12, B17 | |
WWAN (Others) | Depending on the country's ISP |
Bluetooth | Bluetooth 4.0, BLE |
GNSS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
Octa-core | |
WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
WWAN (China) | 2G: 900/1800MHz |
3G: WCDMA: B1,B8 | |
CDMA2000 EVDO: BC0 | |
TD-SCDMA: B34,B39 | |
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 | |
WWAN (Europe) | 2G: 850/900/1800/1900MHz |
3G: B1,B2,B4,B5,B8 | |
4G: B1,B3,B5,B7,B8,B20,B40 | |
WWAN(America) | 2G: 850/900/1800/1900MHz |
3G: B1,B2,B4,B5,B8 | |
4G: B2,B4,B7,B12,B17,B25,B66 | |
WWAN (Others) | Depending on the country's ISP |
Bluetooth | Bluetooth v2.1+EDR,3.0+HS,v4.1+HS |
GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
Physical Characteristics
Dimensions | 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in |
Weight | 654g / 23.07oz |
Display | 5.2'' IPS FHD 1920x1080 |
Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
Power | Li-ion, rechargeable, 8000mAh |
Standby: over 500 hours | |
Continuous use: over 12 hours (depending on user environment) |
|
Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
Interfaces | USB 2.0 Type-C, OTG |
Audio | Speaker, 2 microphones |
Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
Sensors | Gravity sensor, light sensor, proximity sensor |
