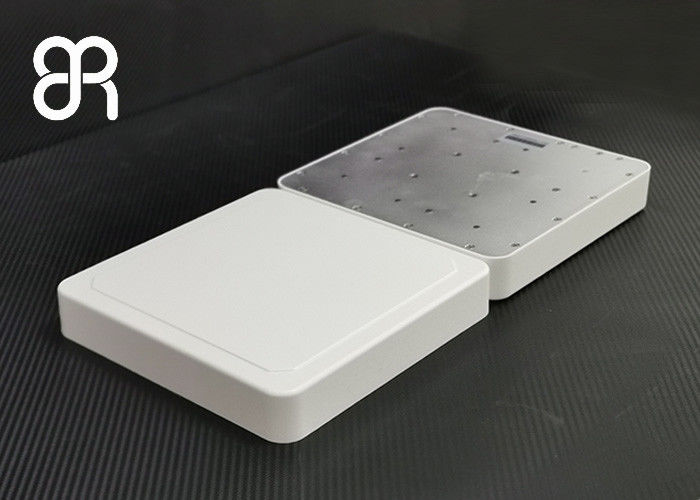

UHF RFID Narrow Beam Antenna Gain 8.5dBic Circular Polarization Aluminum Alloy
  • UHF RFID Narrow Beam Antenna Gain 8.5dBic Circular Polarization Aluminum Alloy
  • UHF RFID Narrow Beam Antenna Gain 8.5dBic Circular Polarization Aluminum Alloy

UHF RFID Narrow Beam Antenna Gain 8.5dBic Circular Polarization Aluminum Alloy

Place of Origin China Shenzhen
Brand Name broadradio
Model Number BRA-31
Product Details
Name:
Narrow Beam Antenna,8.5dBic Antenna
Size:
200mm×200mm×32mm
Weight:
1.3kg (bracket Excluded)
Material:
Aluminum Alloy, Engineering Plastics ASA
Color:
Milk-white
Production Class:
IP65
High Light:

circular polarized antenna

,

circular polarised antenna

Payment & Shipping Terms
Minimum Order Quantity
2pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
3-5work days
Payment Terms
T/T, PayPal
Product Description

BRA-31  Gain 8.5dBic UHF RFID Narrow Beam Antenna,Circular Polarization low VSWR≤1.3:1





Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.



Product Features

1)Impact resistance, anti-vibration, small size, high gain, low VSWR and etc.

2)Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for UHF RFID various severe environments.

3)BRA-31 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.





Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain >8.5 dBic
Beamwidth 78°x78°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type RP-TNC Female



Core technology advantage

1) The management team of Japanese-funded enterprises guarantees order

2) Excellent performance of imported operations and test equipment to ensure accuracy

3) Efficient job management process to ensure efficiency

4) Strict quality control mechanism to ensure quality

5) Large production capacity of 13,000 square meters and 500 production staff guarantee production capacity



Packaging accessories

Host: BRA-31 antenna

Accessories: L plate (mounting bracket), dog teeth, M6 U-bolt, M6 nut, spring washer, flat washer
