IP67 Rfid Reader Antenna Gain 6dBic Circular Polarization 902~928MHz Frequency
  • IP67 Rfid Reader Antenna Gain 6dBic Circular Polarization 902~928MHz Frequency
  • IP67 Rfid Reader Antenna Gain 6dBic Circular Polarization 902~928MHz Frequency
  • IP67 Rfid Reader Antenna Gain 6dBic Circular Polarization 902~928MHz Frequency

IP67 Rfid Reader Antenna Gain 6dBic Circular Polarization 902~928MHz Frequency

Place of Origin China Shenzhen
Brand Name broadradio
Model Number BRA-02CR
Product Details
Name:
Small RFID Antenna,6dBic RFID Antenna
Size:
128mm×128mm×20mm
Weight:
0.3kg (bracket Excluded)
Material:
Engineering Plastics ASA, Aluminum
Color:
Milk-white
Production Class:
IP67
Operating Temperature:
-40℃~+ 85℃
Storage Temperature:
-40℃~+ 85℃
High Light:

rfid reader antenna

,

small uhf antenna

Payment & Shipping Terms
Minimum Order Quantity
2pcs
Price
Negotiable
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
1-3work days
Payment Terms
T/T, PayPal
Product Description

BRA-02CR Gain > 6 dBic UHF Small RFID Antenna,Circular Polarization 902~928MHz Frequency





Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Bowei Smart integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.



Product Features

1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

3)BRA-02CR Antenna is of convenient application in automated production line management, warehousing, logistics, retail and other UHF RFID application fields.

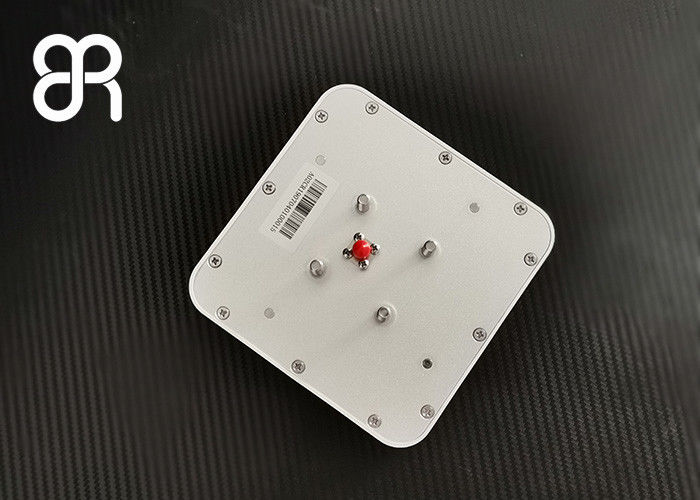

IP67 Rfid Reader Antenna Gain 6dBic Circular Polarization 902~928MHz Frequency 0

Performance Specifications

Frequency Range 902MHz~928MHz(865MHz~868MHz)
VSWR ≤1.3:1
Gain > 6 dBic
H side HPBW 105°
E side HPBW 105°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type SMA-50KFD Female



Mounting

BRA-02CR Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

Antenna bracket is an optional accessory and customers can choose it according to actual need.



Gain 6dBic UHF Small RFID Antenna 128*128*20MM Size Double Waterproof Design

Mounting Dimensions
