| Place of Origin: | China Shenzhen |
| Brand Name: | broadradio |
| Model Number: | BRA-07 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3-5work days |
| Payment Terms: | T/T, PayPal |
| Name: | Small RFID Antenna，Handheld RFID Antenna | Size: | 61 Mm×61 Mm×16.3 Mm |
|---|---|---|---|
| Weight: | 30g | Material: | FR4, Stainless Steel |
| Color: | Green | Production Class: | IP54 |
| Operating Temperature: | -40℃~+ 85℃ | Email: | Cliff.lee@broadradio.com.cn |
| High Light: | rfid reader antenna,small uhf antenna |
||
Antenna gain
Antenna directivity
Beamwidth
Antenna efficiency
Radiated power
Label sensitivity
Label performance
(1)Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.
(2)Mechanical Properties: small size and suitable for various severe environments.

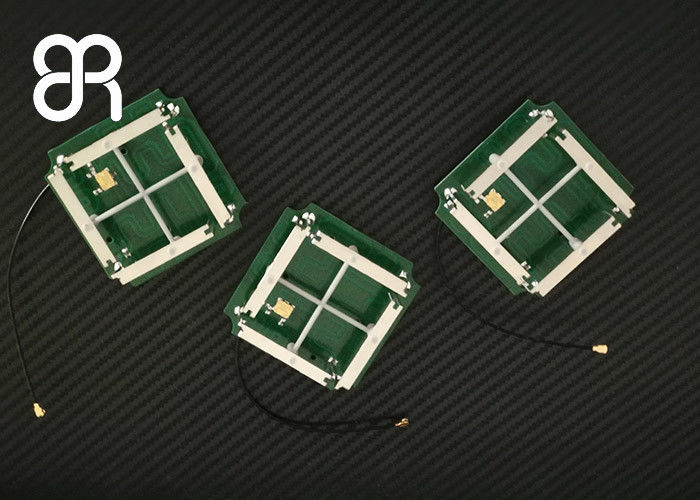

(3)BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 3 dBic |
| Polarization | Circular Polarization |
| Axial ratio | <3 dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type |
CMMX(IPEX optional) |
