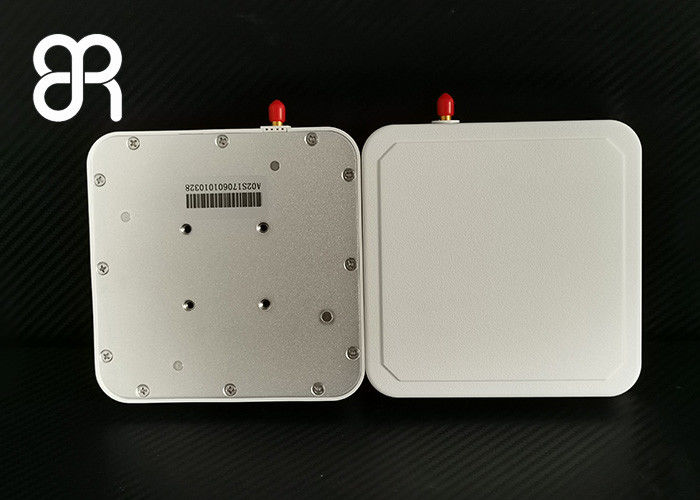

SMA-50KFD Female Connector 6dBic IP67 Rfid Patch Antenna
  • SMA-50KFD Female Connector 6dBic IP67 Rfid Patch Antenna
  • SMA-50KFD Female Connector 6dBic IP67 Rfid Patch Antenna
  • SMA-50KFD Female Connector 6dBic IP67 Rfid Patch Antenna

SMA-50KFD Female Connector 6dBic IP67 Rfid Patch Antenna

Place of Origin China Shenzhen
Brand Name broadradio
Model Number BRA-02
Product Details
Small RFID Antenna,6dBic RFID Antenna
0.3kg (bracket Excluded)
Engineering Plastics ASA, Aluminum
Production Class:
Operating Temperature:
-40℃~+ 85℃
High Light:

Female Connector Rfid Patch Antenna


6dBic Rfid Patch Antenna


IP67 Long Range Rfid Antenna

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Standard Export Carton, Foam and Protective Film
Delivery Time
5-8 work days
Payment Terms
T/T, PayPal
Product Description

BRA-02 Small Size 128×128×20mm UHF RFID Antenna,SMA-50KFD Female Connector Type Antenna



Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.

Product Features

1)BRA-02 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

2)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

3)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.



Performance Specifications


Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 6 dBic
H side HPBW 90°
E side HPBW 90°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type SMA-50KFD Female


Product advantages

1) A wide range of products to meet various distance requirements;

2) Independent research and development of products, free technical and after-sales service;

3) Source factory direct sales, the price is 15%-20% lower than other companies;

4) One-stop service for product customization design, testing and production
