Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-20 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton and Plastic |
Delivery Time: | 3-5work days |
Payment Terms: | T/T, PayPal |
Name: | Small RFID Antenna,4dBic RFID Antenna | Size: | 60 Mm×60 Mm×15.6 Mm |
---|---|---|---|
Weight: | 25g | Material: | F4BM |
Color: | -40℃~+ 85℃ | Operating Temperature: | -40℃~+ 85℃ |
High Light: | 4dBic RFID Directional Antenna,MMCX Connector RFID Directional Antenna,IP67 Long Range Rfid Antenna |

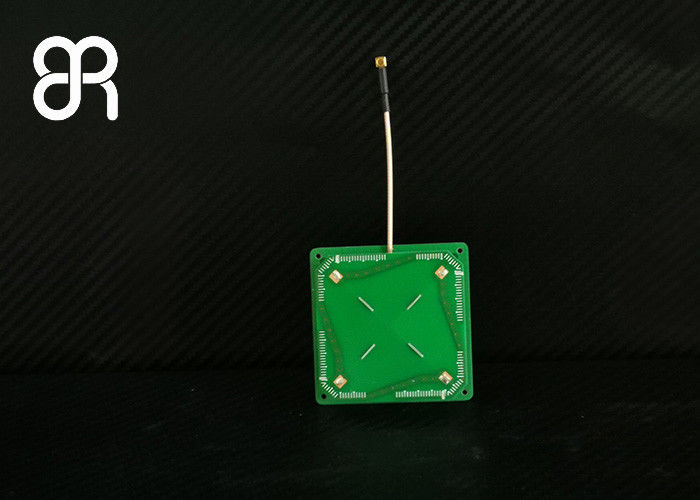

BRA-20 4 dBic Gain UHF Small RFID Antenna For UHF Band RFID Handsets MMCX Connector
As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.
Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.
The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.
Frequency Range |
902Mhz-928Mhz(865MHz~868MHz) |
VSWR | ≤1.3:1 |
Gain | ≥ 4 dBic |
Radiation angle | horizontal 120° × vertical 120° |
Axial ratio | <3dB |
Polarization | Circular polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | MMCX (IPX optional) |
1) 13,000 square meters RFID production base
2) One-on-one service for more than 20 senior RFID engineers
3) 500 production employees guarantee production capacity
4) Serving more than 2,000 integrators and cooperating with Fortune 500 companies
5) Won the “National High-tech Enterprise” and “Shenzhen High-tech Enterprise” Double High Enterprise
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
