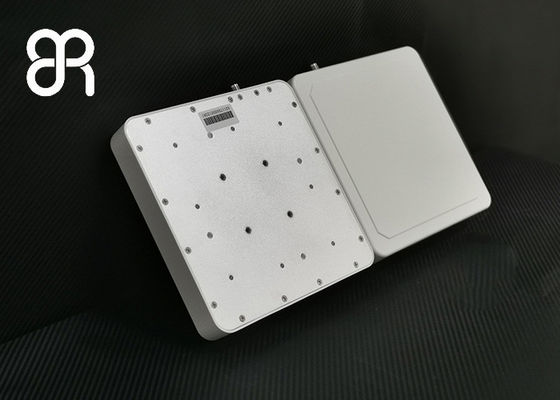

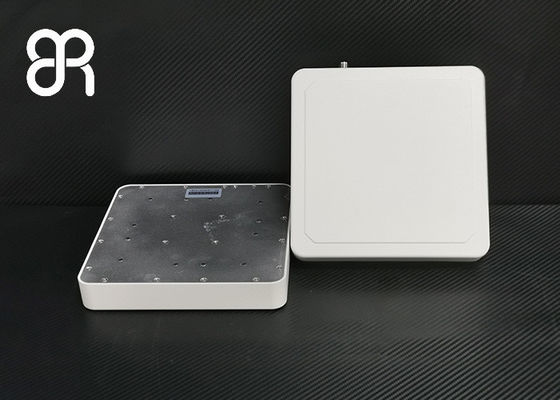

Low VSWR 860~960MHz 8.5dBic RFID Narrow Beam Antenna

Low VSWR 860~960MHz 8.5dBic RFID Narrow Beam Antenna

Low VSWR 860~960MHz 8.5dBic RFID Narrow Beam Antenna
video
Low VSWR 860~960MHz 8.5dBic RFID Narrow Beam Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-31
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5works
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Name: UHF RFID Antenna ,Narrow Beam Antenna Size: 200mm×200mm×32mm
Weight: 1.3kg (bracket Excluded) Material: Aluminum Alloy, Engineering Plastics ASA
Color: Milk-white Roduction Class: IP65
Operating Temperature: -40℃~+ 85℃
High Light:

RFID Narrow Beam Antenna

,

8.5dBic Narrow Beam Antenna

,

960MHz Circular Polarized RFID Antenna

BRA-31 860MHz~960MHz 8.5 dBic Circular Polarization RFID Narrow Beam Antenna



As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.

Product  Features

(1)Impact resistance, anti-vibration, small size, high gain, low VSWR and etc.

(2)Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for UHF RFID various severe environments.

(3)BRA-31 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.









Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain >8.5 dBic
Beamwidth 78°x78°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type RP-TNC Female





Industry application case

1) Foxconn for Apple Project Asset Management

2) Oil Drilling Materials Asset Warehouse

3) Some unmanned self-service store

4) A library intelligent optimization solution

5) A brand apparel retail storage management plan

Production capacity

1) Management team of Japanese-funded enterprises to ensure production order

2) Excellent import operation and test equipment to ensure product accuracy

3) Efficient job management process to ensure production efficiency

4) Strict quality control mechanism to ensure product quality

5) Passed ISO9001: 2018 quality management system certification
