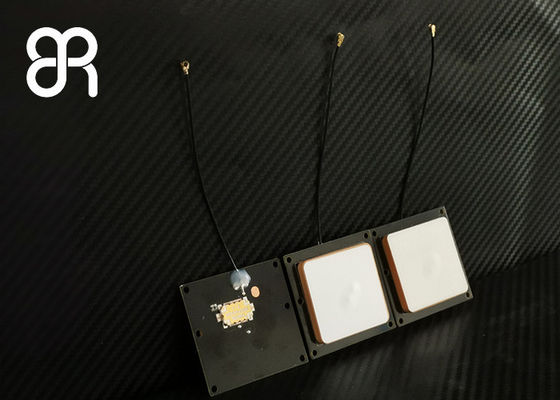

SMA Connector Ceramic 2dBic RFID Reader Antenna 50×50×8mm

SMA Connector Ceramic 2dBic RFID Reader Antenna 50×50×8mm

SMA Connector Ceramic 2dBic RFID Reader Antenna 50×50×8mm
video
SMA Connector Ceramic 2dBic RFID Reader Antenna 50×50×8mm
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-04
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Plastic inner boxer and outer carton
Delivery Time: 5-8works
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Name: Small RFID Antenna,2dbic Reader Antenna Size: 50mm×50mm×8mm
Weight: 35g Material: Ceramic, F4B
Color: White Operating Temperature: -40℃~+ 85℃
High Light:

SMA Connector RFID Reader Antenna

,

2dBic RFID Reader Antenna

,

Ceramic UHF RFID Antenna

BRA-04 RFID Handheld Reader Small RFID Antenna 2dBic Gain Sise 50mm×50mm×8mm



Compared with the traditional bar code, magnetic card, IC card identification methods, RFID technology has the advantages of identifying multiple electronic tags at one time, fast efficiency, accurate collection, strong penetrating ability, remote identification and collection, and not easy to damage. It is suitable for realizing the system Automated data collection



Features


1) The antenna voltage standing wave ratio is less than 1.3, excellent performance
2) It belongs to a circularly polarized antenna with high gain and low standing wave.
3) Small size, beautiful appearance and easy installation
4) The connector type is SMA female
5) Antenna for RFID handheld terminals in the UHF band





Performance Specifications

Frequency Range 902MHz~928MHz
VSWR ≤1.3:1
Gain >2dBic
Polarization Circular Polarization
Axial ratio <3dB
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type SMA (IPX optional)

Provide custom design services

Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.

Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
