Shenzhen Broadradio RFID Technology Co.,Ltd——A leading global provider of RFID hardware solution
Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-20 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3-5work days |
Payment Terms: | T/T, PayPal |
Name: | Small RFID Antenna,4dBic RFID Antenna | Size: | 60 Mm×60 Mm×15.6 Mm |
---|---|---|---|
Material: | PCB | Color: | Green |
Operating Temperature: | -40℃~+ 85℃ | Storage Temperature: | -40℃~+ 85℃ |
Weight: | 25g | Email: | Cliff.lee@broadradio.com.cn |
High Light: | 928MHz Handheld RFID Antenna,MMCX Connector Handheld RFID Antenna,4dBic RFID Reader Antenna |

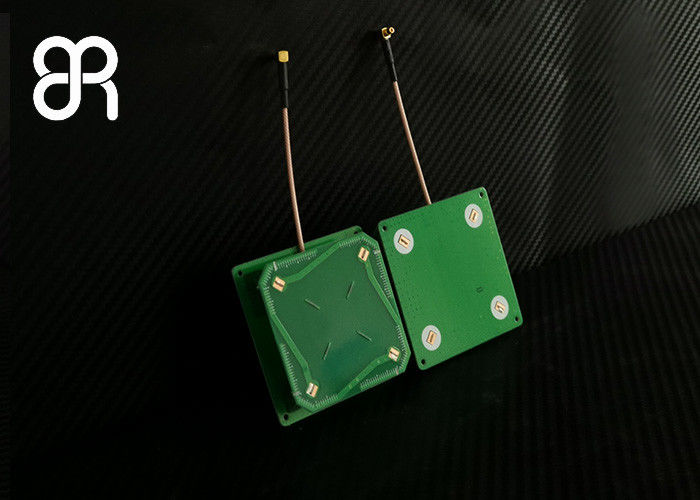

BRA-20 Gain 4dBic UHF Band RFID Handsets Small RFID Antenna Size 60×60×15.6mm
1) 10 years experience in hardware design such as RFID antennas and tags
2) More than 20 industry high specification configuration test equipment
3) Obtained a number of national patents and PCT international patents
4) Master the technology of distributed reverberator feed design, multi-input and multi-out phase control network;
1, Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
2, Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.
3, The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.
Frequency Range | 902MHz-928MHz(865MHz~868MHz) |
VSWR | ≤1.3:1 |
Gain | ≥ 4 dBic |
Radiation angle | horizontal 120° × vertical 120° |
Axial ratio | <3dB |
Polarization | Circular polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | MMCX (SMA optional) |
Antenna gain
Antenna directivity
Beamwidth
Antenna efficiency
Radiated power
Label sensitivity
Label performance
Broadradio has excellent independent innovation ability and professional technical team. The main RFID members are designers or main bearers of Wal-Mart project series labels, Wuliangye fragile security labels, UHF book labels, and national standard vehicle electronic labels. At present, Broadradio has obtained a number of national patents and PCT international patents.
