Place of Origin: | China Shenzhen |
Brand Name: | broadradio |
Model Number: | BRA-20 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3-5work days |
Payment Terms: | T/T, PayPal |
Name: | Small RFID Antenna,RFID Handset Antenna | Size: | 60 Mm×60 Mm×15.6 Mm |
---|---|---|---|
Material: | PCB | Color: | Green |
Operating Temperature: | -40℃~+ 85℃ | Storage Temperature: | -40℃~+ 85℃ |
Weight: | 25g | Email: | Cliff.lee@broadradio.com.cn |
High Light: | MMCX Connector Small RFID Antenna,Circular Polarization Small RFID Antenna,4dBic Rfid Patch Antenna |

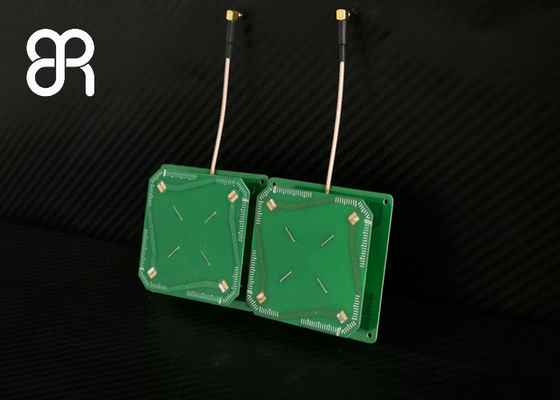

BRA-20 Axial ratio<3dB Circular polarization Small RFID Antenna MMCX (SMA optional) Connector
Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
1, Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
2, Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.
3, The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.
Frequency Range | 902MHz-928MHz(865MHz~868MHz) |
VSWR | ≤1.3:1 |
Gain | ≥ 4dBic |
Radiation angle | horizontal 120° × vertical 120° |
Axial ratio | <3dB |
Polarization | Circular polarization |
Relative humidity | 5%~95% |
Impedance | 50±1Ω |
Connector Type | MMCX (SMA optional) |
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
1) Apparel retail, mainly for inventory, in and out of library management, etc., Shachi, Decathlon, Haicang House
2) The application of the logistics express industry can realize the rapid transit and inventory of parcels, bulk sorting, etc., to achieve logistics transparency (Amazon, Jingdong, SF)
3) Personnel management, mainly for personnel access management, illegal personnel entering alarm prompts (medical, school, conference room, etc.)
4) Production line management, transparent and visual management of production processes, and improved manufacturing efficiency, such as electronic products, tires (Apple, Gree, Haier, Midea)
