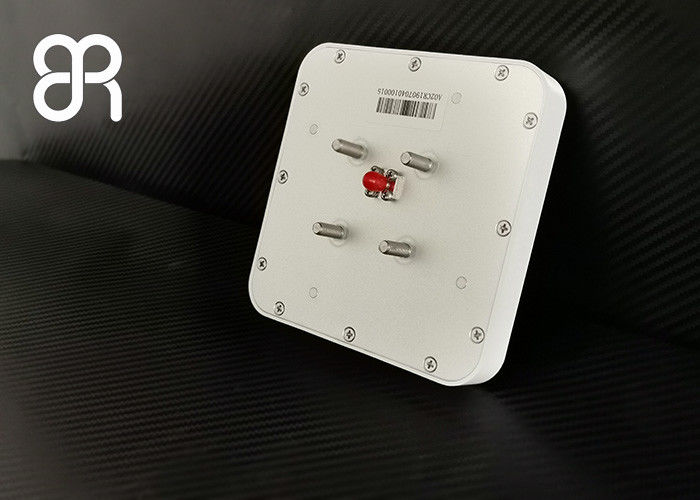

SMA-50KFD Connector IP67 6dBic 928MHz UHF RFID Antenna

SMA-50KFD Connector IP67 6dBic 928MHz UHF RFID Antenna

SMA-50KFD Connector IP67 6dBic 928MHz UHF RFID Antenna
SMA-50KFD Connector IP67 6dBic 928MHz UHF RFID Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-02CR
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 1-3work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: Small RFID Antenna,6dBic RFID Antenna Size: 128mm×128mm×20mm
Weight: 0.3kg (bracket Excluded) Material: Engineering Plastics ASA, Aluminum
Color: Milk-white Production Class: IP67
Operating Temperature: -40℃~+ 85℃ Email:
High Light:

IP67 UHF RFID Antenna


928MHz UHF RFID Antenna


6dBic UHF RFID Reader Antenna

BRA-02CR 902~928MHz Frequency small size RFID Antenna with SMA-50KFD Female Connector



First of all, let's first understand the working principle and advantages of RFID. RFID technology is a non-contact automatic identification technology. After the RFID electronic tag is installed on the identified object, when it enters the magnetic field, a wireless communication is established between the electronic tag and the reader, and the electronic tag communicates to the reader. After sending the product information stored in the chip, the reader receives the information, analyzes and decodes the information, and sends it to the information system for data processing. Compared with one-dimensional barcodes, RFID technology has the advantages of simultaneous recognition of multiple targets, long recognition distance, fast speed, large storage capacity, and strong anti-interference ability.


Product Features

1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

3)BRA-02CR Antenna is of convenient application in automated production line management, warehousing, logistics, retail and other UHF RFID application fields.


SMA-50KFD Connector IP67 6dBic 928MHz UHF RFID Antenna 0

Performance Specifications

Frequency Range 902MHz~928MHz(865MHz~868MHz)
VSWR ≤1.3:1
Gain > 6 dBic
H side HPBW 105°
E side HPBW 105°
Polarization Circular Polarization
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type SMA-50KFD Female

Industry application case

1) Foxconn for Apple Project Asset Management

2) Oil Drilling Materials Asset Warehouse

3) Some unmanned self-service store

4) A library intelligent optimization solution

5) A brand apparel retail storage management plan


As a leading global UHF RFID hardware solution provider, Broadradio has more than 10 years of experience in rfid antenna and label design. It has worked on RFID projects of various application types and is familiar with how to select antennas, tags and readers to obtain The optimal system integration effect has become a long-term partner of many listed companies in the RFID industry.
