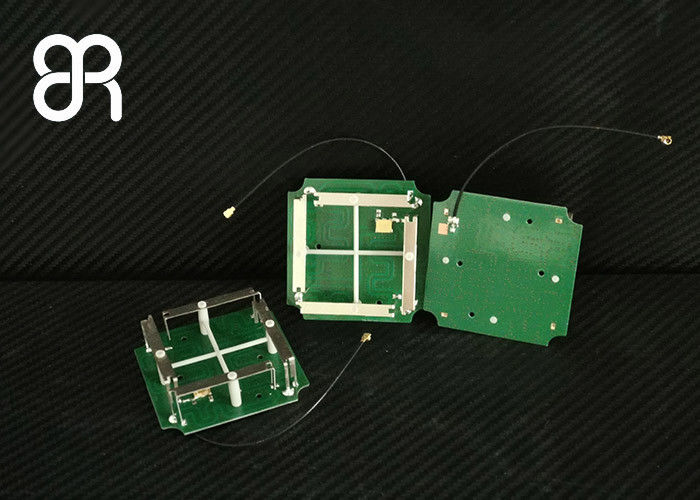

FR4 3dBic Circular Polarization RFID Reader Antenna

FR4 3dBic Circular Polarization RFID Reader Antenna

FR4 3dBic Circular Polarization RFID Reader Antenna
FR4 3dBic Circular Polarization RFID Reader Antenna
Product Details:
Place of Origin: China Shenzhen
Brand Name: broadradio
Model Number: BRA-07
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5work days
Payment Terms: T/T, PayPal
Contact Now
Detailed Product Description
Name: Small RFID Antenna,Handheld RFID Antenna Size: 61 Mm×61 Mm×16.3 Mm
Weight: 30g Material: FR4, Stainless Steel
Color: Green Production Class: IP54
Operating Temperature: -40℃~+ 85℃ Email:
High Light:

Circular Polarization RFID Reader Antenna


FR4 RFID Reader Antenna


3dBic UHF RFID Antenna

BRA-07 3dBic Circular Polarization RFID Reader Antenna For Handheld RFID Reader

RFID technology principle

RFID is the English abbreviation of radio frequency identification technology. It is a non-contact automatic identification technology. Its basic principle is to use radio frequency signals and spatial coupling (inductive or electromagnetic coupling) transmission characteristics to realize automatic identification of identified objects. Its core composition has three parts, as follows:

1. Electronic tag (Tag): It is composed of coupling components and chips. Each tag has a unique electronic code and is attached to the object to identify the target object.
2. Antenna: Transmit radio frequency signals between the tag and the reader.
3. Reader: A device that reads (and sometimes writes) tag information, which can be designed as a handheld or fixed type.

Product  Features

(1)Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.

(2)Mechanical Properties: small size and suitable for various severe environments.

(3)BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.



Performance Specifications

Frequency Range 860MHz~960MHz
VSWR ≤1.3:1
Gain > 3 dBic
Polarization Circular Polarization
Axial ratio <3 dB
Relative humidity 5%~95%
Impedance 50±1Ω
Connector Type

CMMX(IPEX optional)

Mechanical Specifications

Size 61 mm×61 mm×16.3 mm
Weight 30g
Material FR4, stainless steel
Color green
Production Class IP54
Operating Temperature -40℃~+ 85℃
Storage Temperature -40℃~+ 85℃


Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
