Small Handheld Reader 3dBic Gain Green UHF RFID Antenna For Severe Environment

Small Size Handheld Reader Antenna With 3dBic Gain Green UHF RFID Antenna For Severe Environment

Product Model

BRA-07 Antenna

Product Function and Features

Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.

Mechanical Properties: small size and suitable for various severe environments.

Product Applications

BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.

Performance Specifications

Frequency Range: 902MHz～928MHz

VSWR: ≤1.3:1

Gain: > 3 dBic

Polarization: Circular Polarization

Axial ratio: <3 dB

Relative humidity: 5%～95%

Impedance: 50±1Ω

Connector Type: SMA (IPX optional)

Mechanical Specifications

Size: 61 mm×61 mm×16.3 mm

Weight: 30g

Material: FR4, stainless steel

Color: green

Production Class: IP54

Operating Temperature: -40℃~+ 85℃

Storage Temperature: -40℃~+ 85℃

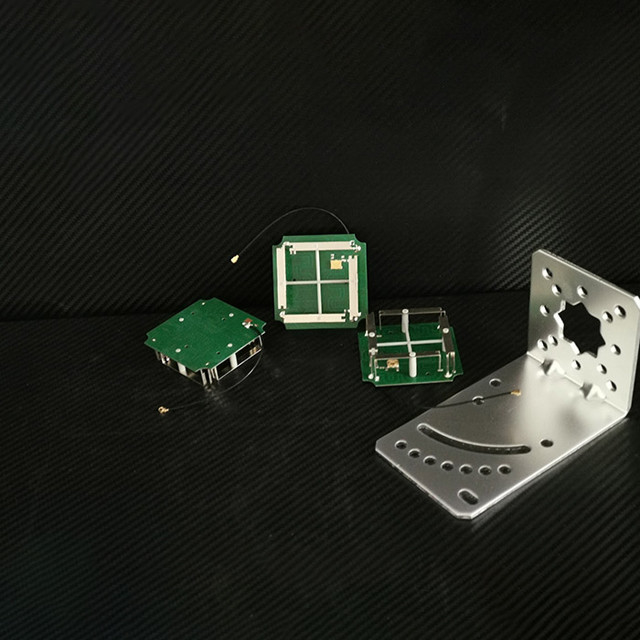

Figure 1. Antenna Photo

Antenna Pattern
