High Gain FR4 Stainless Steel UHF RFID Antenna Handset With Circular Polarization

High Gain FR4 Stainless Steel UHF RFID Antenna Handset With Circular Polarization

High Gain FR4 Stainless Steel UHF RFID Antenna Handset With Circular Polarization
video
High Gain FR4 Stainless Steel UHF RFID Antenna Handset With Circular Polarization
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Broadradio
Model Number: BRA-07
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastics inner box and outer Carton
Delivery Time: 3-5work days
Payment Terms: T/T,Paypal
Contact Now
Detailed Product Description
Frequency: 902-928MHz Size: 61 Mm×61 Mm×16.3 Mm
Gain: 3 DBic Axial Ratio: <3dB
Weight: 30g Material: FR4, Stainless Steel
Color: Green
High Light:

Stainless Steel UHF RFID Antenna

,

FR4 UHF RFID Antenna

High Gain FR4 Stainless Steel UHF RFID Antenna Handset Application With Circular Polarization Small Size

Product Model

BRA-07 Antenna



Product Function and Features

Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.

Mechanical Properties: small size and suitable for various severe environments.



Product Applications

BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.



Performance Specifications

Frequency Range: 902MHz~928MHz

VSWR: ≤1.3:1

Gain: > 3 dBic

Polarization: Circular Polarization

Axial ratio: <3 dB

Relative humidity: 5%~95%

Impedance: 50±1Ω

Connector Type: SMA (IPX optional)



Mechanical Specifications

Size: 61 mm×61 mm×16.3 mm

Weight: 30g

Material: FR4, stainless steel

Color: green

Production Class: IP54

Operating Temperature: -40℃~+ 85℃

Storage Temperature: -40℃~+ 85℃



High Gain FR4 Stainless Steel UHF RFID Antenna Handset With Circular Polarization 0

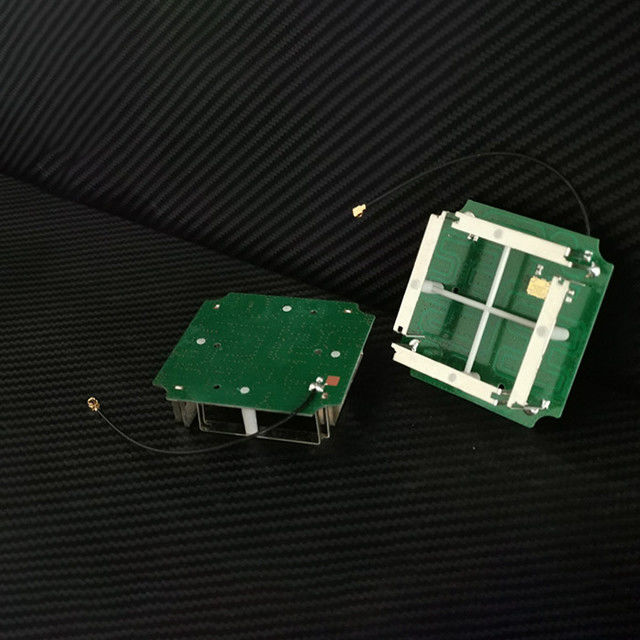

Figure 1. Antenna Photo

Antenna Pattern



High Gain FR4 Stainless Steel UHF RFID Antenna Handset With Circular Polarization 1


Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
